Highlights:
- Processor Socket: Socket H3 LGA-1150
- Total Processor Supported: 1
- Memory Technology: DDR3 SDRAM
- Maximum Memory: 32 GB
Intel® LGA1150 4th, New 4th & 5th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready
This motherboard supports Intel® 4th , New 4th and 5th Generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance.
This motherboard supports Intel® 4th , New 4th and 5th Generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance.
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
H97-PLUS
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
H97-PLUS
Product Name

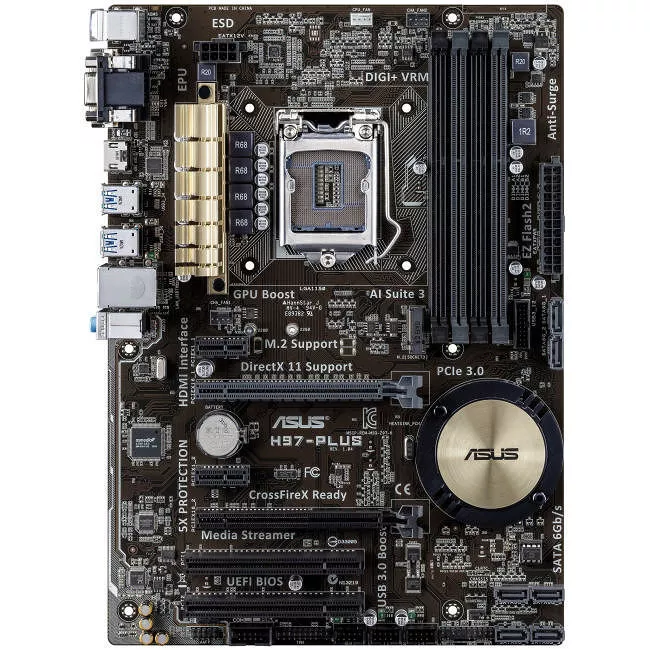

H97-PLUS Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Technology
Processor Socket
Socket H3 LGA-1150
Processor Supported
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Memory Form Factor
DIMM
Maximum Memory
32 GB
Memory Standard
DDR3-1600/PC3-12800
Memory Technology
DDR3 SDRAM
Memory Speed Supported
1600 MHz
I/O Controller
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
Video
Onboard Video
CPU Dependent Video
Graphics Controller Manufacturer
Intel
Graphics Controller Memory
512 MB
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC887
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
6
Number of PCI Slots
2
PCI Express Standard
Total Number of PCI Express Slots
4
Number of PCI Express x1 Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
2
Number of USB 3.0 Ports
4
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
VGA
Yes
HDMI
Yes
Number of HDMI Outputs
1
DVI
Yes
Number of DVI Outputs
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
PS/2 Port
Yes
Number of PS/2 Ports
2
Onboard Interfaces
Number of SATA Interfaces
6
Number of M.2 Interfaces
1
Total Number of Onboard USB Ports
8
Number of Onboard USB 2.0 Ports
6
Number of Onboard USB 3.0 Ports
2
Onboard Serial Header
Yes
Onboard Audio Header
Yes
Onboard S/PDIF Header
Yes
Power Description
Power Supply Supported
ATX12V
Physical Characteristics
Form Factor
ATX
Width
12"
Depth
8.6"
Miscellaneous
Package Contents
- H97-PLUS Desktop Motherboard
- User's Manual
- I/O Shield
- 2 x SATA 6Gb/s Cable(s)
- Support Disc
Certifications & Standards
- ACPI 5.0
- CE
- FCC
- KC (KOREA CERTIFICATION)
- BSMI
- C-TICK
Environmentally Friendly
Yes
Environmental Certification
Country of Origin
China
Warranty
Limited Warranty
3 Year
