ASU-H81T/CSM/C/SI-00
MPN: H81T/CSM/C/SI

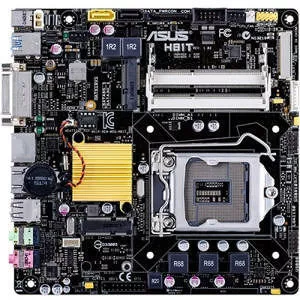

ASUS H81T/CSM/C/SI Desktop Motherboard - Intel H81 Chipset - Socket H3 LGA-1150 - Mini ITX

Highlights
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
H81T/CSM/C/SI
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
H81T/CSM/C/SI
Product Name
H81T/CSM/C/SI Desktop Motherboard
Package Type
Retail
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
H81
Total Processor Supported
1
Processor Technology
Turbo Boost Technology 2.0
Processor Socket
Socket H3 LGA-1150
Processor Supported
  • Core i7
  • Core i5
  • Core i3
  • Pentium
  • Celeron
    • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    2
    Memory Form Factor
    DIMM
    Maximum Memory Supported
    16 GB
    Memory Standard
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    Intel
    Graphics Memory Technology
    DDR3 SDRAM
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC887-VD
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    1
    PCI Express Standard
    PCI Express 2.0
    Number of Mini PCI Express Slots
    1
    Interfaces/Ports
    eSATA
    Yes
    Number of eSATA Ports
    1
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    2
    Number of USB 3.0 Ports
    2
    Audio Line In
    Yes
    Audio Line Out
    Yes
    HDMI
    Yes
    Number of HDMI Outputs
    1
    DVI
    Yes
    Number of DVI Outputs
    1
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    2
    Number of mSATA Interfaces
    1
    Total Number of Onboard USB Ports
    5
    Number of Onboard USB 2.0 Ports
    5
    Physical Characteristics
    Form Factor
    Mini ITX
    Width
    6.7"
    Depth
    6.7"
    Miscellaneous
    Country of Origin
    China
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
