ABOUT

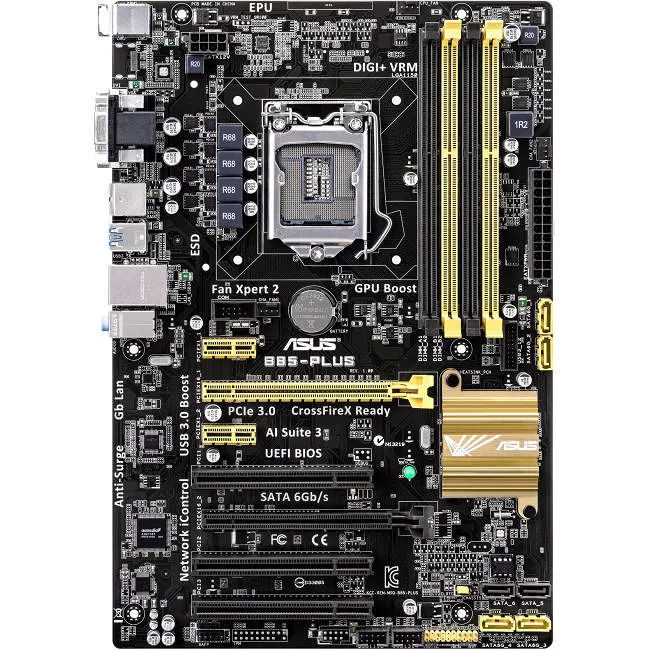

Intel® LGA1150 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready
This motherboard supports Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors are among the most powerful and energy efficient CPUs in the world.
This motherboard supports Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors are among the most powerful and energy efficient CPUs in the world.
See More
SPECIFICATIONS
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
B85-PLUS
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
B85-PLUS
Product Name
B85-PLUS Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Technology
Processor Socket
Socket H3 LGA-1150
Processor Supported
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Memory Form Factor
DIMM
Maximum Memory
32 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
CPU Dependent Video
Graphics Controller Manufacturer
Intel
Graphics Controller Memory
1 GB
Graphics Memory Technology
DDR3 SDRAM
Graphics Memory Accessibility
Shared
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC887
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
7
Number of PCI Slots
3
PCI Express Standard
Total Number of PCI Express Slots
4
Number of PCI Express x1 Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
4
Number of USB 3.0 Ports
2
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
VGA
Yes
DVI
Yes
Number of DVI Outputs
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
PS/2 Port
Yes
Number of PS/2 Ports
2
Onboard Interfaces
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
6
Number of Onboard USB 2.0 Ports
4
Number of Onboard USB 3.0 Ports
2
Onboard Serial Header
Yes
Onboard LEDs Header
Yes
Onboard Audio Header
Yes
Onboard S/PDIF Header
Yes
Power Description
Power Supply Supported
ATX12V
Physical Characteristics
Form Factor
ATX
Height
2"
Width
12"
Depth
8.2"
Miscellaneous
Certifications & Standards
- CE
- FCC
- KC (KOREA CERTIFICATION)
- BSMI
- C-TICK
- ACPI 4.0a
Environmentally Friendly
Yes
Environmental Certification
Country of Origin
China
Warranty
Limited Warranty
3 Year
