ASR-Z97 EXTREME6-00

MPN: Z97 EXTREME6

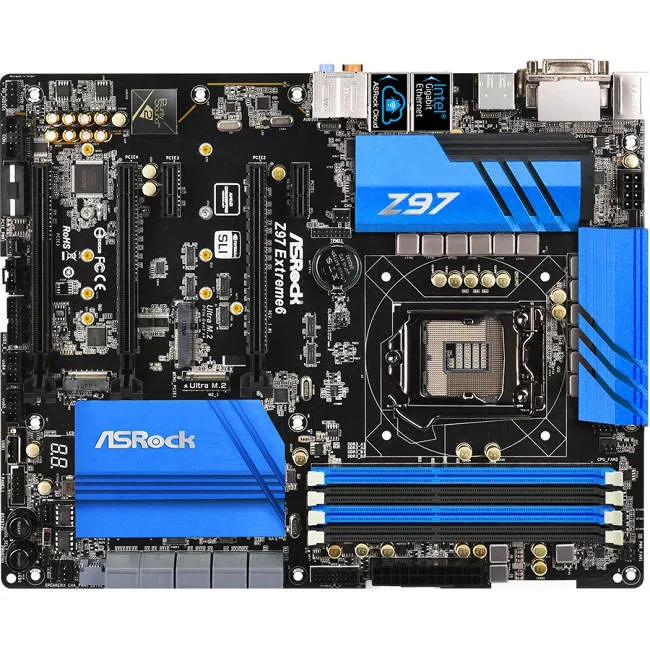

ASRock Z97 EXTREME6 Desktop Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150 - ATX

Highlights

Processor Socket:

Socket H3 LGA-1150

Total Processor Supported:

1

Memory Technology:

DDR3 SDRAM

Maximum Memory:

32 GB

About

Specifications

ASRock Ultra M.2 Gen3 x4 32Gb/s Socket Provides You The Ultimate Speed!

Specifications

General Information

Manufacturer

ASRock, Inc

Manufacturer Part Number

Z97 EXTREME6

Manufacturer Website Address

http://www.asrock.com

Brand Name

ASRock

Product Model

Z97 Extreme6

Product Name

Z97 Extreme6 Desktop Motherboard

Product Type

Desktop Motherboard

Processor & Chipset

Chipset Manufacturer

Intel

Chipset Model

Z97 Express

Total Processor Supported

1

Processor Technology

Turbo Boost Technology 2.0

Quick Sync Video Technology

Processor Socket

Socket H3 LGA-1150

Processor Supported

Core i7

Core i5

Core i3

Pentium

Celeron

Xeon

64-bit Processing

Yes

Multi GPU Supported

CrossFireX

SLI

Memory

Number of Memory Slots

4

Memory Form Factor

DIMM

Maximum Memory Supported

32 GB

Memory Standard

DDR3-3200/PC3-25600 (O.C.)

DDR3-2933/PC3-23400 (O.C.)

DDR3-2800/PC3-22400 (O.C.)

DDR3-2400/PC3-19200 (O.C.)

DDR3-2133/PC3-17000 (O.C.)

DDR3-1866/PC3-15000 (O.C.)

DDR3-1600/PC3-12800

DDR3-1333/PC3-10600

DDR3-1066/PC3-8500

Memory Technology

DDR3 SDRAM

Memory Speed Supported

3200 MHz

2933 MHz

2800 MHz

2400 MHz

2133 MHz

1866 MHz

1600 MHz

1333 MHz

1066 MHz

I/O Controller

Controller Type

Serial ATA/600

RAID Supported

Yes

RAID Levels

0

1

5

1+0

Video

Onboard Video

CPU Dependent Video

Graphics Controller Memory

1.75 GB

Graphics Memory Technology

DDR3 SDRAM

Graphics Memory Accessibility

Shared

Audio

Sound Controller Model

ALC1150

Audio Channels

7.1

Network & Communication

Gigabit Ethernet

Yes

I/O Expansions

Total Number of Expansion Slots

6

PCI Express Standard

PCI Express 3.0

PCI Express 2.0

Total Number of PCI Express Slots

5

Number of PCI Express x1 Slots

2

Number of PCI Express x16 Slots

3

Number of Mini PCI Express Slots

1

Interfaces/Ports

eSATA

Yes

Number of eSATA Ports

1

Total Number of USB Ports

6

Number of USB 3.0 Ports

6

Audio Line In

Yes

Audio Line Out

Yes

Microphone Port

Yes

S/PDIF

Yes

Number of S/PDIF Out Ports

1

HDMI

Yes

Number of HDMI Outputs

1

DisplayPort

Yes

Number of DisplayPort Outputs

1

DVI

Yes

Number of DVI Outputs

1

Network (RJ-45)

Yes

Number of Network (RJ-45) Ports

2

PS/2 Port

Yes

Number of PS/2 Ports

1

Onboard Interfaces

Number of SATA Interfaces

10

Number of M.2 Interfaces

2

Number of SATA Express Interfaces

1

Total Number of Onboard USB Ports

9

Number of Onboard USB 2.0 Ports

5

Number of Onboard USB 3.0 Ports

4

Onboard Serial Header

Yes

Onboard LEDs Header

Yes

Onboard Audio Header

Yes

Onboard Thunderbolt Header

Yes

Controls/Indicators

Buttons & Keys

Power

Reset

BIOS Switch

CMOS Clear

Power Description

Power Supply Supported

ATX12V

Physical Characteristics

Form Factor

ATX
