ASR-X570 CREATOR-00
MPN: X570 CREATOR

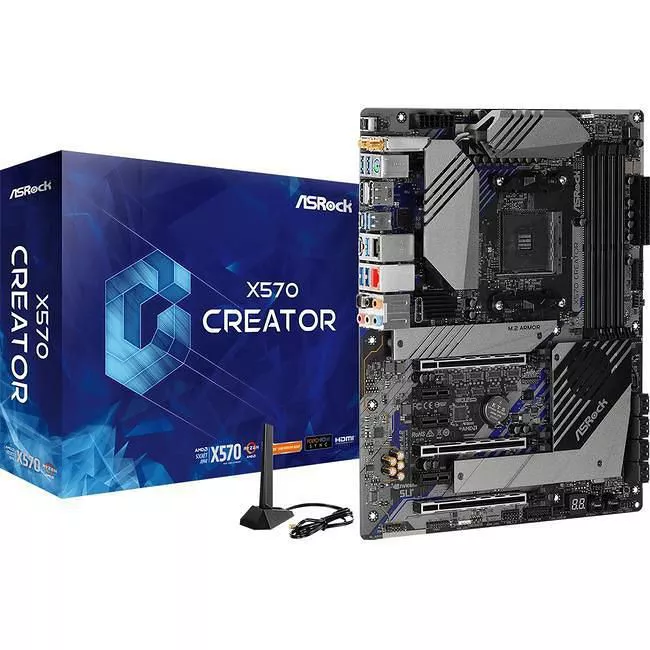

ASRock X570 CREATOR Desktop Motherboard - AMD X570 Chipset - Socket AM4 - ATX

Highlights
  • Supports AMD AM4 Socket Ryzenâ„¢ 2000 and 3000 Series processors
  • Supports DDR4 4666+ (OC)
  • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
  • AQUANTIA® 10G LAN, Intel® Gigabit LAN
  • 3 PCIe 4.0 x16, 3 PCIe 2.0 x1
  • NVIDIA® NVLinkâ„¢, Quad SLIâ„¢, AMD 3-Way CrossFireXâ„¢
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
  • Supports Supports DTS Connect
  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
  • 1 Front USB 3.2 Gen2 Type-C, 10 USB 3.2 Gen1 (4 Front, 6 Rear)
  • 2 Intel® Thunderboltâ„¢ 3 Type-C

Motherboard Built For Content Creators!

Built with primo components and out edge technology, ASRock Creator series makes content creation easy and pleasure

REVOLUTIONARY X570 MOTHERBOARDS:Your PC Transformed

Style . More reliable. Design that delivers.

Thunderboltâ„¢ 3 Technology

Thunderboltâ„¢ 3 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 3 Thunderboltâ„¢ 3 devices with a single wire, and even provides quick charging with 5V@3A (15W).
Just experience the world's fastest connectivity with Thunderboltâ„¢ ready motherboards!

AQUANTIA® 10Gb/s BASE-T Ethernet

The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtionâ„¢ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.

ECC Memory Support

ECC (Error-correcting code) is a method of detecting and correcting single-bit memory errors. It's mission-critical to minimize errors in data especially for the server business and data centers. This motherboard is capable of supporting DDR4 ECC un-buffered memory modules that delivers server-grade performance and rock-solid durability for high-end computing systems, such as scientific or financial computers.

14 POWER PHASE DESIGN (IR® DIGITAL PWM)

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Dr. MOS

IR3555 Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal result and superior performance.

EBR Fan

The longer lifespan EBR bearing fan were used to ensure the best durability. Compares with normal sleeve bearing fan, EBR bearing fan has lifespan up to 50,000 hours, equivalent to 5.7 years of working under full speed.

Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock's motherboard equipped with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.
