About
Specifications

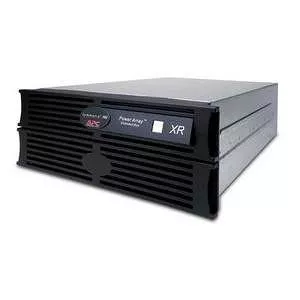

The APC Symmetra RM XR Frame is equipped with four SYBT2 battery modules. This four SYBT2 battery modules supports both 208V and 240V nominal output voltages. It is designed for scalable power protection in data centers and critical applications.
About
The APC Symmetra RM XR Frame is equipped with four SYBT2 battery modules. This four SYBT2 battery modules supports both 208V and 240V nominal output voltages. It is designed for scalable power protection in data centers and critical applications.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SYRMXR4B4
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name
Symmetra XR Frame
Product Type
Rack Cabinet
Physical Characteristics
Height
7"
Width
19"
Depth
25.2"
Weight (Approximate)
242.51 lb
Rack Height
4U
Rack Width
19"
Miscellaneous
For Country/Region
United States
Package Contents
- Symmetra XR Frame Rack Cabinet
- Rack Mounting Brackets
- User Manual
Additional Information
- Pre-Installed Batteries: 4
- Battery mounting: Enclosed battery cabinet
- RBC Quantity: 4
- Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
- Expected Battery Life (years): 3 to 5
- Cascading Capabilities
- Rack Mount
- Hot Pluggable Operation
- Hot Swap Batteries
- Intelligent Battery Management
- Replace Batt Indicator
- Status Indicator LED's
- Batteries Scalable to 208/240V
Certifications & Standards
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Take Back Program
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYRMXR4B4_ROHS_DECLARATION&p_FileName=SYRMXR4B4KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036337&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036337&lang=en-us
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
Yes
Lead Free
Yes
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace, optional on-site warranties available, optional extended warranties available
