Highly available single phase UPS features redundant and scalable double-conversion on-line power protection
About
Highly available single phase UPS features redundant and scalable double-conversion on-line power protection
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SYH6K6RMT-TF3
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Symmetra
Product Series
RM
Product Name

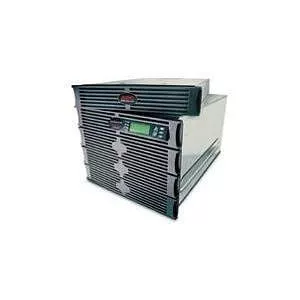

Symmetra RM 6kVA UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
Receptacle Type
NEMA L6-30P 30A
Receptacle Detail
Number of Battery & Surge Outlets
6
Dataline Protection
RJ-45
Overload Protection
Yes
Cord Length
10 ft
Power Description
Load Capacity (VA)
6000 VA
Input Voltage
208 V AC
Output Voltage
Input Frequency
63 Hz
Output Frequency
60 Hz
Waveform Type
Sine Wave
Management
Network Management
SNMP Manageable
Alarm
Bypass Switch
Automatic & Manual
Emergency Power OFF
Yes
Interfaces/Ports
Modular Slots
1 x SmartSlot
Battery Information
Battery Characteristics
Spill-proof/Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
12.30 Minute
Backup/Run Time (Half Load)
29.10 Minute
Typical Battery Recharge Time
3 Hour
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Thermal Dissipation
741.18 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
10U
Mounting Location
Front
Mounting Preference
Lower
Height
17.5"
Width
19"
Depth
28.7"
Weight (Approximate)
389.82 lb
Miscellaneous
Package Contents
Additional Information
- Output Voltage Distortion: less than 5% at full load
- Crest Factor: up to 5 : 1
- Pre-Installed Batteries: 3
- Replacement battery cartridge Quantity: 3
Certifications & Standards
CSA
Optimized Energy Efficiency
Yes
Product Take Back Program
No
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH6K6RMT-TF3_ROHS_DECLARATION&p_FileName=SYH6K6RMT-TF3KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036281&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036281&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
Lead Free
Yes
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace, optional on-site warranties available, optional extended warranties available
