Highly available single phase UPS features redundant and scalable double-conversion on-line power protection
About
Highly available single phase UPS features redundant and scalable double-conversion on-line power protection
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SYH4K6RMT-P1
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Symmetra
Product Series
RM
Product Name

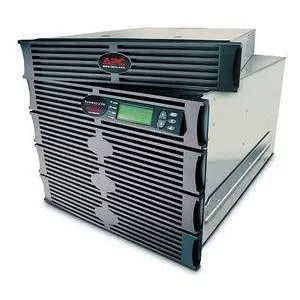

Symmetra RM 4kVA UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
Receptacle Type
NEMA L6-30P 30A
Receptacle Detail
Number of Battery & Surge Outlets
14
Dataline Protection
RJ-45
Cord Length
10 ft
Power Description
Load Capacity (VA)
4000 VA
Input Voltage
208 V AC
Output Voltage
Output Frequency
60 Hz
Waveform Type
Sine Wave
Management
Network Management
SNMP Manageable
Alarm
Bypass Switch
Emergency Power OFF
Yes
Controls/Indicators
Status Indicators
- Overload
- Replace Battery
Interfaces/Ports
Modular Slots
1 x SmartSlot
Battery Information
Battery Characteristics
Spill-proof/Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
12.20 Minute
Backup/Run Time (Half Load)
28.70 Minute
Typical Battery Recharge Time
4 Hour
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Thermal Dissipation
494.12 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
10U
Mounting Location
Front
Mounting Preference
Lower
Height
17.5"
Width
19"
Depth
28.7"
Weight (Approximate)
324.67 lb
Miscellaneous
For Country/Region
United States
Package Contents
Additional Information
- Automatic Self Test
- Battery modules connected in parallel
- Input Power Factor Correction
- LCD AlphaNumeric Display
- N+1 Redundancy
- Scalable Power Capacity
- Scalable Run Time
- Software
- Wide input voltage range
Certifications & Standards
CSA
Product Take Back Program
No
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH4K6RMT-P1_ROHS_DECLARATION&p_FileName=SYH4K6RMT-P1KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036263&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036263&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
REACH free of SVHC
No
Environmentally Friendly
Yes
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace, optional on-site warranties available, optional extended warranties available
