About
Specifications
Highly available single phase UPS features redundant and scalable double-conversion on-line power protection
About
Highly available single phase UPS features redundant and scalable double-conversion on-line power protection
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SYH2K6RMT-TF3
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Symmetra
Product Name

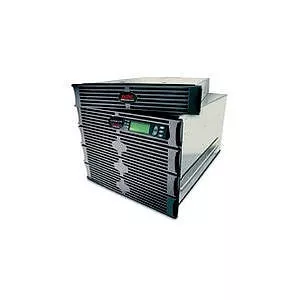

Symmetra 2kVA Scalable to 6kVA Rack-mountable with Step-Down Transformer
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
Receptacle Type
NEMA L6-30P 30A
Receptacle Detail
Number of Battery & Surge Outlets
6
Overload Protection
Yes
Cord Length
10 ft
Power Description
Load Capacity (VA)
2000 VA
Input Voltage
208 V AC
Output Voltage
Input Frequency
63 Hz
Output Frequency
60 Hz
Waveform Type
Sine Wave
Management
Network Management
SNMP Manageable
Alarm
Bypass Switch
Automatic & Manual
Emergency Power OFF
Yes
Interfaces/Ports
Modular Slots
1 x SmartSlot
Battery Information
Battery Characteristics
Spill-proof/Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
11.90 Minute
Backup/Run Time (Half Load)
27.70 Minute
Typical Battery Recharge Time
4 Hour
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Thermal Dissipation
247.06 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
10U
Mounting Location
Front
Mounting Preference
Lower
Height
17.5"
Width
19"
Depth
28.7"
Weight (Approximate)
259.55 lb
Miscellaneous
For Country/Region
United States
Package Contents
Additional Information
- Output Voltage Distortion: Less than 5% at full load
- Crest Factor: Up to 5 : 1
- Battery Slots Empty: 4
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Configurable for N+1 internal redundancy
- Generator compatible
- Predictive failure notification
Certifications & Standards
CSA
Optimized Energy Efficiency
Yes
Product Take Back Program
No
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH2K6RMT-TF3_ROHS_DECLARATION&p_FileName=SYH2K6RMT-TF3KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036253&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036253&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
REACH free of SVHC
No
Environmentally Friendly
Yes
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace, optional on-site warranties available, optional extended warranties available
