About
Specifications
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
About
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SYA12K16PXR
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Symmetra
Product Series
LX
Product Name

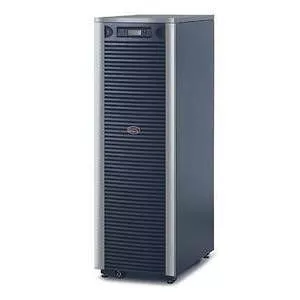

Symmetra LX 12kVA Scalable to 16kVA N+1 Ext. Run Tower, 208/240V Input, 208/240V and 120V Output UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
Hard Wire 4-wire
Receptacle Type
Hard Wire 4-wire (2PH+N+G)
Receptacle Detail
1 x Hard Wire 4-wire (2PH+N+G)
Number of Battery & Surge Outlets
1
Overload Protection
Yes
Power Description
Load Capacity (VA)
12 kVA
Input Voltage
208 V AC
Output Voltage
Input Frequency
65 Hz
Output Frequency
60 Hz
Input Current
56 A
Waveform Type
Sine Wave
Management
Network Management
SNMP Manageable
Bypass Switch
Emergency Power OFF
Yes
Interfaces/Ports
Modular Slots
1 x SmartSlot
Battery Information
Battery Characteristics
Spill-proof/Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
30.10 Minute
Backup/Run Time (Half Load)
1.12 Hour
Typical Battery Recharge Time
7.50 Hour
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Thermal Dissipation
1463.89 W
Physical Characteristics
Color Family
Dual Color
Product Color
Form Factor
Tower
Rack Height
19U
Mounting Location
Front
Mounting Preference
No Preference
Height
59.7"
Width
19"
Depth
28.6"
Weight (Approximate)
1077.27 lb
Miscellaneous
For Country/Region
United States
Package Contents
Additional Information
- Automatic restart of loads after UPS shutdown
- Audible and visible alarms prioritized by severity
Certifications & Standards
CSA
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA12K16PXR_ROHS_DECLARATION&p_FileName=SYA12K16PXRKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036044&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036044&lang=en-us
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
Country of Origin
United States
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
