Products / Power Devices / UPS
APC-SY20K40F-00
MPN: SY20K40F

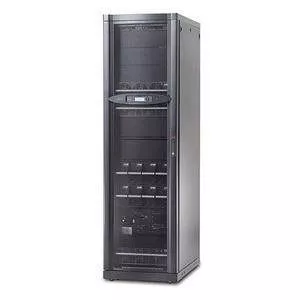

APC SY20K40F APC Symmetra PX 20kW Scalable UPS

Highlights
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SY20K40F
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Symmetra
Product Series
PX
Product Name
Symmetra PX 20kW Scalable UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
Hard Wire 5-wire
Receptacle Type
Screw Terminal
Receptacle Detail
1 x Screw Terminal
Bypass Switch
Static
Emergency Power OFF
Yes
Power Description
Load Capacity (VA)
20 kVA
Load Capacity (Watt)
20 kW
Input Voltage
220 V AC
Output Voltage
208 V AC
Waveform Type
Sine Wave
Management
Network Management
SNMP Manageable
Alarm
  • On Battery
  • Low Battery
    • Battery Management
    Intelligent Battery Management
    Interfaces/Ports
    Network (RJ-45)
    Yes
    Total Number of Expansion Slots
    2
    Battery Information
    Battery Characteristics
    Maintenance-free
    Battery Chemistry
    Lead Acid
    Backup/Run Time (Full Load)
    3.80 Minute
    Backup/Run Time (Half Load)
    14.40 Minute
    Typical Battery Recharge Time
    3 Hour
    Hot Swappable
    Yes
    Environmental Conditions
    Maximum Operating Temperature
    104°F (40°C)
    Sound Emission (A-Weighted)
    64 dB(A)
    Thermal Dissipation
    3402.85 W
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Height
    82"
    Width
    24"
    Depth
    35.5"
    Rack Height
    42U
    Weight (Approximate)
    1165 lb
    Miscellaneous
    Package Contents
    • User Manual
    • Web/SNMP Management Card
    Additional Information
    • Automatic Self Test
    • Battery modules connected in parallel
    • Cold-start
    • Compact Design
    • Early-warning Problem Notification
    • Easy Maintenance
    • Event logging
    • Front-access servicing
    • Full-rated Power with kVA equaling kW
    • Galvanic isolation
    • Generator Compatible
    • Hot Swap Electronics
    • Input Power Factor Correction
    • LCD AlphaNumeric Display
    • Load Meter
    • Menu-driven Operating Instructions
    • Modular Fault-tolerant Design
    • Modular-level Repair
    • Multiple System Shutdown
    • N+1 Redundancy
    • Out-of-Band Management
    • Overload Indicator
    • Pager notification
    • Programmable power event response
    • Rated for Power-Factor Corrected Loads
    • Revolutionary Modular Design for built-In Fault-Tolerance
    • Scalable Power Capacity
    • Scalable Run Time
    • Smallest footprint
    • Temperature Compensated Battery Charging
    • Wide input voltage range
    Certifications & Standards
    • cUL Listed
    • EN 50091-1
    • EN 50091-2
    • FCC Part 15 Class A
    • ISO 14001
    • ISO 9001
    • UL 1778
    • UL 60950
    Country of Origin
    United States
    Warranty
    Limited Warranty
    1 Year
