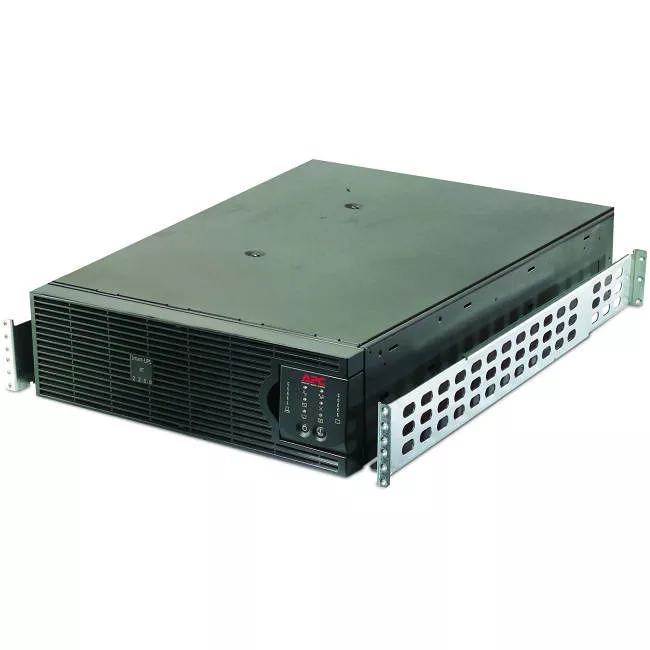

The APC Smart-UPS RT is an online UPS with a power rating of 2200VA and output power capacity of 1540 watts. It includes multiple output connections such as IEC 60230 C19, IEC 60230 C13, and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.
About
The APC Smart-UPS RT is an online UPS with a power rating of 2200VA and output power capacity of 1540 watts. It includes multiple output connections such as IEC 60230 C19, IEC 60230 C13, and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SURTD2200XLIM
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Name
Smart-UPS 2200VA Rack-mountable UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
Number of Battery & Surge Outlets
12
Bypass Switch
Automatic & Manual
Emergency Power OFF
Yes
Cord Length
8.20 ft
Power Description
Load Capacity (VA)
2200 VA
Load Capacity (Watt)
1540 W
Input Voltage
230 V
Output Voltage
Waveform Type
Sine Wave
Surge Energy Rating
555 J
Interfaces/Ports
Serial Port
Yes
Network (RJ-45)
Yes
Total Number of Expansion Slots
1
Battery Information
Number of Batteries
1
Battery Characteristics
Maintenance-free, Sealed
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
21 Minute
Backup/Run Time (Half Load)
48 Minute
Typical Battery Recharge Time
2.50 Hour
Hot Swappable
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Height
17"
Width
5.1"
Depth
26"
Rack Height
3U
Form Factor
Rack-mountable
Mounting Preference
Lower
Mounting Location
Front
Weight (Approximate)
120.26 lb
Miscellaneous
For Country/Region
United States
Package Contents
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURTD2200XLIM_ROHS_DECLARATION&p_FileName=SURTD2200XLIMKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=66018242&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=66018242&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
WEEE Statement
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly
Yes
Warranty
Limited Warranty
2 Year
