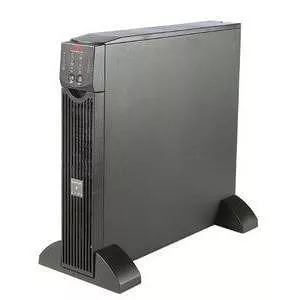

The APC Smart-UPS RT is an online UPS with a power rating of 1500VA and output power capacity of 1050 watts. It includes 6 NEMA 5-15R outlets. This model is includes a lead-acid battery and is not rack-mountable. The UPS features double conversion online technology and sine wave output.
About
The APC Smart-UPS RT is an online UPS with a power rating of 1500VA and output power capacity of 1050 watts. It includes 6 NEMA 5-15R outlets. This model is includes a lead-acid battery and is not rack-mountable. The UPS features double conversion online technology and sine wave output.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SURTA1500XL
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
RT
Product Model
SURTA1500XL
Product Name
SMART-UPS RT 1500VA (120V) UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15P
Receptacle Detail
6 x NEMA 5-15R
Number of Battery & Surge Outlets
6
Bypass Switch
Automatic
Emergency Power OFF
Yes
Cord Length
5.91 ft
Phase
Single Phase
Power Description
Load Capacity (VA)
1500 VA
Load Capacity (Watt)
1050 W
Input Voltage
120 V AC
Output Voltage
120 V AC
Waveform Type
Sine Wave
Surge Energy Rating
540 J
Management
Alarm
Battery Management
Intelligent Battery Management
Controls/Indicators
Status Indicators
- Bypass
- Load bar-graphs
- Battery bar-graphs
- On Line
- On Battery
- Replace Battery
- Overload
Interfaces/Ports
Serial Port
Yes
USB
Yes
Total Number of Expansion Slots
1
Battery Information
Battery Characteristics
Spill-proof, Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
8.60 Minute
Backup/Run Time (Half Load)
22.20 Minute
Typical Battery Recharge Time
3 Hour
Hot Swappable
Yes
Environmental Conditions
Maximum Operating Temperature
122°F (50°C)
Thermal Dissipation
115.18 W
Physical Characteristics
Color Family
Black
Product Color
Black
Height
17"
Width
3.3"
Depth
22"
Rack Height
2U
Form Factor
Tower
Mounting Preference
Lower
Mounting Location
Front
Weight (Approximate)
60.63 lb
Miscellaneous
For Country/Region
United States
Package Contents
Additional Information
- Supports both Tower and Rack-mountable configurations but does not include rack mounting kit
- Automatic restart of loads after UPS shutdown
- Cold-start capable
- Generator Compatible
- Serial Connectivity
Certifications & Standards
BSMI|CSA
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURTA1500XL_ROHS_DECLARATION&p_FileName=SURTA1500XLKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765896&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765896&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
REACH free of SVHC
No
WEEE Statement
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
