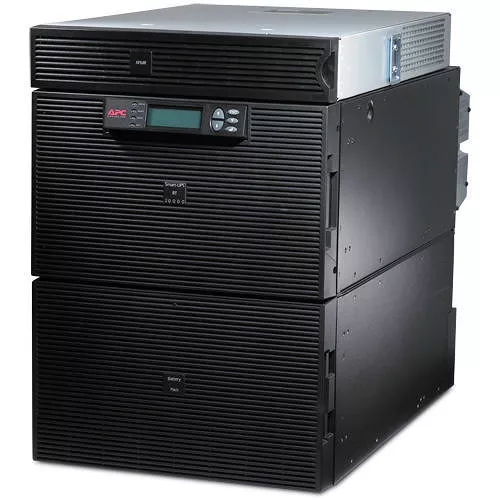

The APC Smart-UPS RT is an online UPS with transformer and a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as NEMA 5-20R, NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
About
The APC Smart-UPS RT is an online UPS with transformer and a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as NEMA 5-20R, NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SURT20KRMXLTTF5
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
RT
Product Name
Smart-UPS RT 20kVA Tower/Rack Mountable UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
Hard Wire 3-wire
Receptacle Type
Receptacle Detail
Number of Battery & Surge Outlets
17
Overload Protection
Yes
Power Description
Load Capacity (VA)
20 kVA
Input Voltage
208 V AC
Output Voltage
Input Frequency
70 Hz
Output Frequency
60 Hz
Input Current
105 A
Waveform Type
Sine Wave
Management
Network Management
SNMP Manageable
Bypass Switch
Emergency Power OFF
Yes
Interfaces/Ports
Serial Port
Yes
Network (RJ-45)
Yes
Battery Information
Battery Characteristics
Spill-proof/Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
4.90 Minute
Backup/Run Time (Half Load)
15.30 Minute
Typical Battery Recharge Time
2.50 Hour
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
14U
Mounting Location
Front
Mounting Preference
Lower
Height
24.5"
Width
17"
Depth
30.4"
Weight (Approximate)
641.35 lb
Miscellaneous
For Country/Region
United States
Package Contents
Certifications & Standards
UL 1778
Software Included
PowerChute Management Software
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT-TF5_ROHS_DECLARATION&p_FileName=SURT20KRMXLT-TF5KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035887&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035887&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
Country of Origin
Philippines
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
