Products / Power Devices / UPS
APC-SURT18KRMXLJ-00
MPN: SURT18KRMXLJ

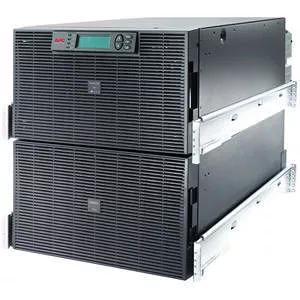

APC SURT18KRMXLJ Smart-UPS On-line 18kVA Tower/Rack Mountable UPS

Highlights
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SURT18KRMXLJ
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Model
SURT18KRMXLJ
Product Name
Smart-UPS On-line SURT18KRMXLJ 18kVA Tower/Rack Mountable UPS
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
Hard Wire 3-wire
Receptacle Type
Hard Wire 3-wire
Receptacle Detail
1 x Hard Wire 3-wire
Number of Battery & Surge Outlets
6
Power Description
Load Capacity (VA)
18 kVA
Input Voltage
  • 110 V DC
  • 220 V AC
    • Output Voltage
    200 V AC
    Input Frequency
    70 Hz
    Output Frequency
    60 Hz
    Input Current
    100 A
    Waveform Type
    Sine Wave
    Management
    Network Management
    SNMP Manageable
    Bypass Switch
  • Automatic
  • External
  • Internal
  • Manual
  • Static
  • Optional
    • Emergency Power OFF
    Yes
    Interfaces/Ports
    Serial Port
    Yes
    Network (RJ-45)
    Yes
    Modular Slots
    SmartSlot
    Battery Information
    Number of Batteries
    4
    Battery Characteristics
    Maintenance-free/Sealed/Spill Proof
    Battery Chemistry
    Lead Acid
    Typical Battery Recharge Time
    2.50 Hour
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Rack-mountable
    Rack Height
    12U
    Height
    21"
    Width
    17"
    Depth
    30"
    Weight (Approximate)
    545 lb
    Miscellaneous
    Package Contents
  • Smart-UPS On-line SURT18KRMXLJ 18kVA Tower/Rack Mountable UPS
  • CD with software
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • User manual
  • Web/SNMP management card
    • Environmentally Friendly
    Yes
    Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
    • Warranty
    Limited Warranty
    2 Year

    Specifications
