24V DC UPS designed specifically for industrial automation and controls. This 325W UPS comes with hardwire input/output and can be mounted on a DIN Rail or any control panel. It features temperature-compensated battery charging that helps prolong the battery life. It comes with a 2-year standard warranty.
About
24V DC UPS designed specifically for industrial automation and controls. This 325W UPS comes with hardwire input/output and can be mounted on a DIN Rail or any control panel. It features temperature-compensated battery charging that helps prolong the battery life. It comes with a 2-year standard warranty.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SUA500PDR-S
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name

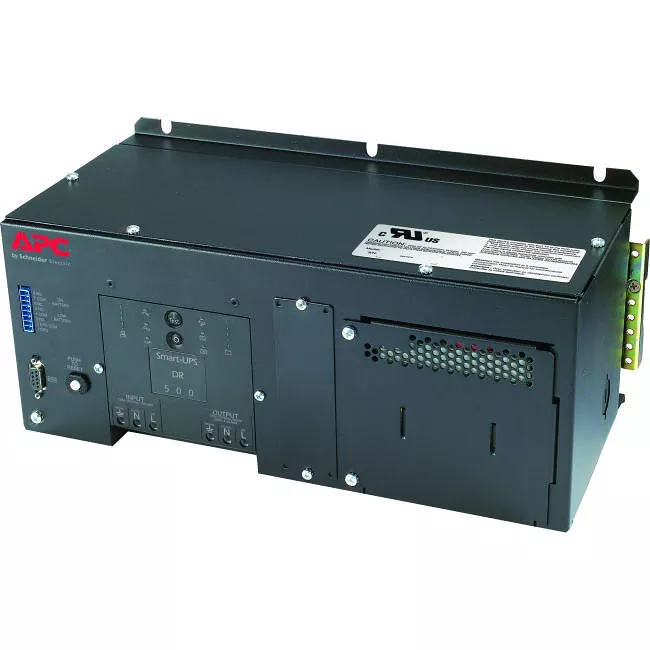

Industrial Panel and DIN Rail UPS with Standard Battery 500VA 120V
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
Hard Wire 3 wire (1PH+N+G)
Receptacle Type
Hard Wire 3-wire (H N + G)
Receptacle Detail
1 x Hard Wire 3-wire (H N + E)
Number of Battery & Surge Outlets
1
Emergency Power OFF
Yes
Cord Length
8.01 ft
Power Description
Load Capacity (VA)
500 VA
Load Capacity (Watt)
325 W
Input Voltage
120 V
Output Voltage
120 V AC
Waveform Type
Sine Wave
Surge Energy Rating
540 J
Interfaces/Ports
Serial Port
Yes
Total Number of Expansion Slots
1
Battery Information
Battery Characteristics
Maintenance-free, Sealed
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
8 Minute
Backup/Run Time (Half Load)
24 Minute
Typical Battery Recharge Time
2 Hour
Physical Characteristics
Color Family
Black
Product Color
Black
Height
5.8"
Width
14.3"
Depth
6.7"
Rack Height
1U
Form Factor
Tower
Mounting Preference
No Preference
Weight (Approximate)
28.35 lb
Miscellaneous
For Country/Region
United States
Package Contents
Certifications & Standards
UL Recognized
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA500PDR-S_ROHS_DECLARATION&p_FileName=SUA500PDR-SKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194164&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194164&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
