About
Specifications

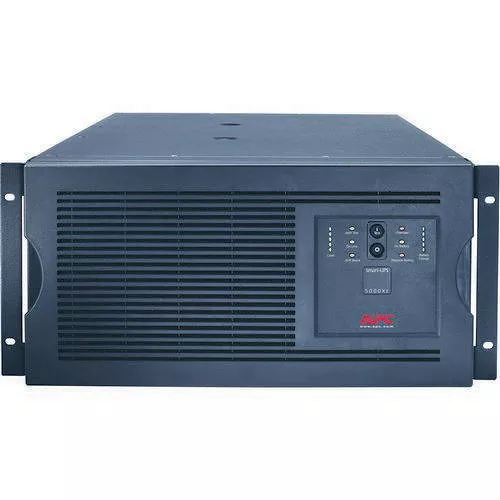

The APC Smart-UPS is a rackmount or tower UPS with a power rating of 5000VA and 4000 watts. It supports 208V input and output, and includes multiple output connections such as 2 NEMA L6-20R and 2 NEMA L6-30R. The UPS uses lead-acid batteries and features a SmartSlot for additional management options.
About
The APC Smart-UPS is a rackmount or tower UPS with a power rating of 5000VA and 4000 watts. It supports 208V input and output, and includes multiple output connections such as 2 NEMA L6-20R and 2 NEMA L6-30R. The UPS uses lead-acid batteries and features a SmartSlot for additional management options.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SUA5000RMT5U
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Name
Smart-UPS 5000VA Tower/Rack-mountable UPS
Packaged Quantity
1 Each
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA L6-30P
Receptacle Type
NEMA L6-30P
Receptacle Detail
Number of Battery & Surge Outlets
4
Emergency Power OFF
Optional
Cord Length
8 ft
Power Description
Load Capacity (VA)
5000 VA
Load Capacity (Watt)
4000 W
Input Voltage
208 V
Output Voltage
208 V AC
Waveform Type
Sine Wave
Surge Energy Rating
480 J
Management
Network Management
SNMP Manageable
Battery Information
Battery Characteristics
Spill-proof, Maintenance-free
Battery Chemistry
Lead Acid
Typical Battery Recharge Time
3 Hour
Hot Swappable
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Height
8.7"
Width
19"
Depth
26"
Rack Height
5U
Form Factor
Rack-mountable
Mounting Preference
Lower
Mounting Location
Front
Weight (Approximate)
215.46 lb
Miscellaneous
For Country/Region
United States
Package Contents
Certifications & Standards
CSA
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA5000RMT5U_ROHS_DECLARATION&p_FileName=SUA5000RMT5UKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765536&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765536&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
Directly Connected Equipment Guarantee
$150000 Lifetime
