About
Specifications
Smart-UPS XL 1000VA allow for expanding runtime by simply plugging in additional battery packs.
About
Smart-UPS XL 1000VA allow for expanding runtime by simply plugging in additional battery packs.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SUA1000XL
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
XL
Product Name

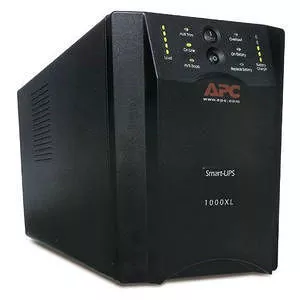

Smart-UPS XL 1000VA
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
8 x NEMA 5-15R
Emergency Power OFF
Optional
Cord Length
6 ft
Power Description
Load Capacity (VA)
1000 VA
Input Voltage
110 V AC
Output Voltage
120 V AC
Power Consumption
800 W
Waveform Type
Sine Wave
Surge Energy Rating
459 J
Management
Alarm
Battery Management
Intelligent Battery Management
Controls/Indicators
Status Indicators
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Interfaces/Ports
Serial Port
Yes
USB
Yes
Total Number of Expansion Slots
1
Battery Information
Battery Characteristics
Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
9.60 Minute
Backup/Run Time (Half Load)
33.30 Minute
Typical Battery Recharge Time
5 Hour
Hot Swappable
Yes
Environmental Conditions
Maximum Operating Temperature
113°F (45°C)
Sound Emission (A-Weighted)
42 dB(A)
Thermal Dissipation
35.17 W
Physical Characteristics
Product Color
Black
Height
8.5"
Width
6.7"
Depth
17.3"
Weight (Approximate)
42 lb
Miscellaneous
Package Contents
- CD with software
- Smart UPS signalling RS-232 cable
- User Manual
- USB cable
Additional Information
- Automatic Self Test
- Automatic Voltage Regulation (AVR)
- Building wiring fault indicator
- Load Meter
- Network-grade line conditioning
- Replace Batt Indicator
- Scalable Run Time
- Software
- User Replaceable batteries
- Wide input voltage range
Certifications & Standards
- BSMI
- CSA
- FCC Part 15 Class A
- UL 1778
Warranty
Limited Warranty
2 Year
