Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMX3000RMLV2U
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
X
Product Model
SMX3000RMLV2U
Product Name

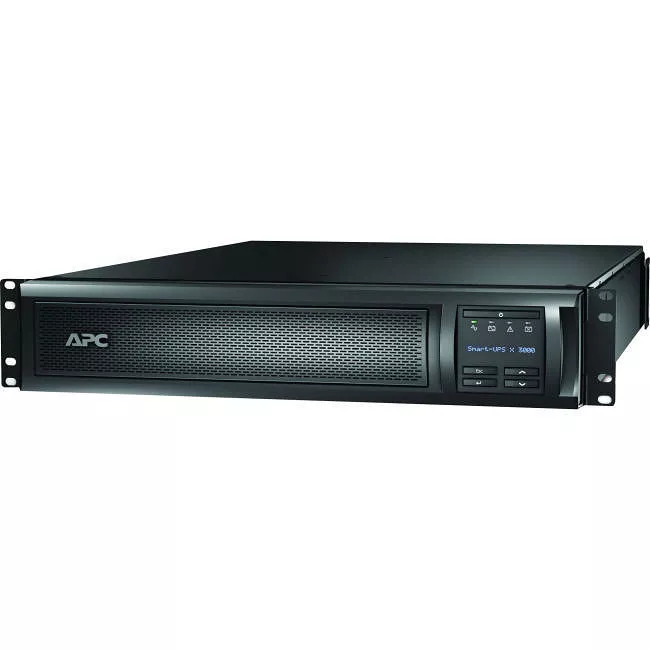

Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA L5-30P
Receptacle Type
NEMA L5-30P
Receptacle Detail
Number of Battery & Surge Outlets
7
Emergency Power OFF
Yes
Cord Length
8 ft
Transfer Time
4 ms
Power Description
Load Capacity (VA)
2880 VA
Load Capacity (Watt)
2700 W
Input Voltage
120 V
Input Current
15 A
Output Voltage
120 V AC
Waveform Type
Sine Wave
Surge Energy Rating
540 J
Interfaces/Ports
Serial Port
Yes
USB
Yes
Total Number of Expansion Slots
1
Battery Information
Battery Characteristics
Maintenance-free, Sealed, Spill-proof
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
6 Minute
Backup/Run Time (Half Load)
18 Minute
Typical Battery Recharge Time
3 Hour
Hot Swappable
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Height
3.3"
Width
17"
Depth
26.3"
Rack Height
2U
Form Factor
Rack-mountable
Mounting Preference
Lower
Mounting Location
Front
Weight (Approximate)
84.77 lb
Miscellaneous
Package Contents
Certifications & Standards
BSMI|CSA|NOM|TÜV|VCCI Class A
Software Included
Powerchute Serial Edition
Environmentally Friendly
Yes
Environmental Certification
RoHS
Green Premium
Yes
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000RMLV2U_ROHS_DECLARATION&p_FileName=SMX3000RMLV2UKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035430&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035430&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC
No
Country of Origin
Philippines
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
Directly Connected Equipment Guarantee
$150000 Lifetime
