Highlights:
  • Backup/Run Time (Full Load): 2.40 Minute
  • Output Voltage: 230 V AC
  • Receptacles: 2 x IEC 60320 C13 | 3 x IEC 60320 C13 | 1
  • Subcategory: UPS
Contact sales for pricing

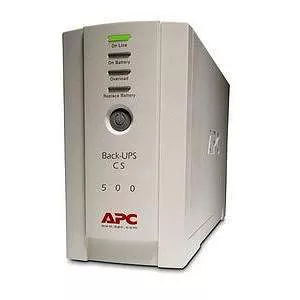

APC Back-UPS CS 500VA provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.

General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
BK500EI
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Back-UPS
Product Series
CS
Product Model
BK500EI
Product Name
Back-UPS CS 500VA
Product Type
Standby UPS
Technical Information
Plug/Connector Type
IEC 320-C14
Receptacles
  • 2 x IEC 60320 C13
  • 3 x IEC 60320 C13
  • 1
  • Dataline Protection
    RJ-45
    Power Description
    Load Capacity
    500 VA/300 W
    Input Voltage
    220 V AC
    Output Voltage
    230 V AC
    Surge Energy Rating
    300 J
    Management
    Alarm
  • On Battery
  • Low Battery
  • Overload
  • Controls/Indicators
    Status Indicators
    • On Line
    • On Battery
    • Replace Battery
    • Overload
    Interfaces/Ports
    USB
    Yes
    Battery Information
    Battery Characteristics
    Spill-proof, Maintenance-free
    Battery Chemistry
    Sealed Lead Acid (SLA)
    Backup/Run Time (Full Load)
    2.40 Minute
    Backup/Run Time (Half Load)
    13.90 Minute
    Hot Swappable
    Yes
    Environmental Conditions
    Maximum Operating Temperature
    113°F (45°C)
    Thermal Dissipation
    7.03 W
    Physical Characteristics
    Color
    Beige
    Height
    6.5"
    Width
    3.6"
    Depth
    11.2"
    Weight (Approximate)
    13.90 lb
    Miscellaneous
    Package Contents
    • Back-UPS CS
    • Software CD
    • USB cable
    • User Manual
    Additional Information
    • Replacement battery cartridge Quantity: 1
    • Units per Pallet: 96
    • Automatic restart of loads after UPS shutdown
    • Automatic self-test
    • Power conditioning
    Certifications & Standards
    • C-tick
    • CE
    • EN 50091-1
    • EN 50091-2
    • GOST
    • PCBC
    • VDE
    • UL 1449
    Warranty
    Limited Warranty
    2 Year
