Highlights:
- Backup/Run Time (Full Load): 2 Minute
- Output Voltage: 120 V AC
- Receptacles: 9 x NEMA 5-15R | 2 x USB
- Subcategory: UPS
Plus free Windows PC power management software (Mac OS uses power saving settings). 'energy). 3-5 year lifespan. Automatic self-test for early detection of the need to replace a battery. Battery Failure notification provides an early warning battery failure analysis function. Includes: 2 USB charging ports, USB cable, user manual. Black. Certifications and standards: California (CEC) Battery Charger, CSA C22.2 NO. 107.3, cTUVus, FCC Part 15 Class B, UL 1778. APC UPS spare battery sold separately.
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
BE850G2
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Back-UPS
Product Name

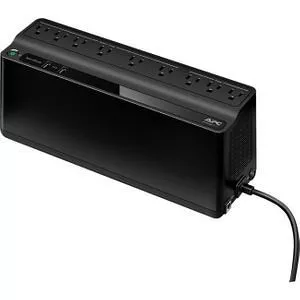

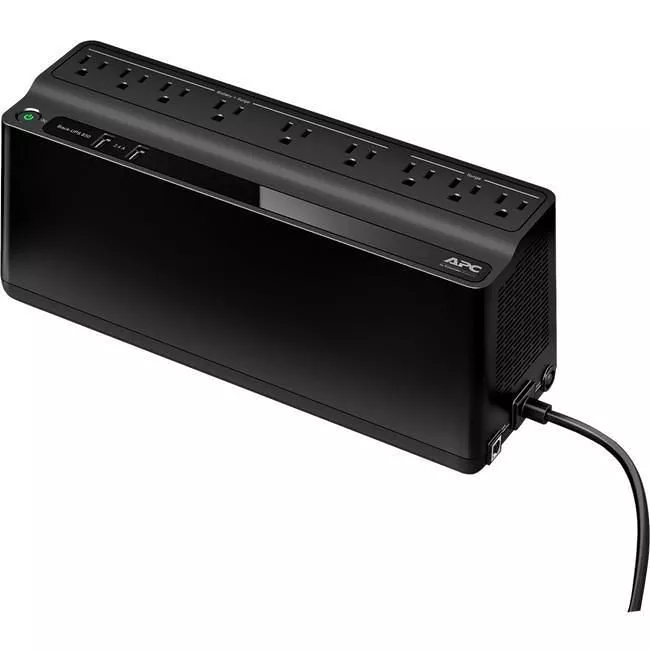

Back-UPS 850VA Wall Mountable UPS
Product Type
Standby UPS
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacles
Number of Battery & Surge Outlets
6
Number of Surge-only Outlets
3
Cord Length
5 ft
Transfer Time
6 ms
Application/Usage
Power Description
Load Capacity
850 VA/450 W
Input Voltage
120 V AC
Input Voltage Range
92 V AC - 139 V AC
Output Voltage
120 V AC
Input Frequency
50 Hz to 60 Hz
Output Frequency
50 Hz to 60 Hz
Waveform Type
Stepped Approximated Sine Wave
Surge Energy Rating
354 J
Management
Network Management
USB
Alarm
Controls/Indicators
Status Indicators
LED Status Display:
- On Battery
- Replace Battery
- Building Wiring Fault
Battery Information
Battery Characteristics
Maintenance-free, Sealed, Leak-proof
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
2 Minute
Backup/Run Time (Half Load)
11 Minute
Typical Battery Recharge Time
8 Hour
Hot Swappable
Yes
Replaceable Battery
Yes
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Storage Temperature
5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation
9842.52 ft
Maximum Storage Elevation
49212.60 ft
Storage Relative Humidity
10% - 90%
Sound Emission
45 dB(A)
Physical Characteristics
Color
Black
Height
5.5"
Width
12.9"
Depth
4.1"
Weight (Approximate)
9.04 lb
Miscellaneous
Package Contents
- Back-UPS 850VA, 2 USB Charging Ports
- USB Cable
- User Manual
Certifications & Standards
- California (CEC) Battery Charger
- CSA C22.2 NO. 107.3
- cTUVus
- FCC Part 15 Class B
- UL 1778
Environmentally Friendly
Yes
Environmental Certification
Country of Origin
Philippines
Warranty
Limited Warranty
3 Year
Directly Connected Equipment Guarantee
$75000 - Lifetime
