Highlights:
  • Backup/Run Time (Full Load): 3.20 Minute
  • Output Voltage: 120 V AC
  • Receptacles: 7 x NEMA 5-15R | 1 x USB
  • Subcategory: UPS
Contact sales for pricing

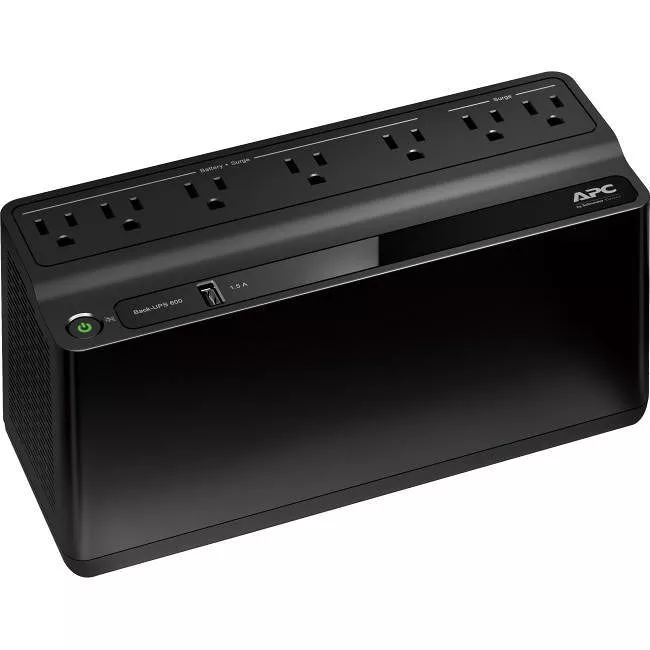

Battery Backup & Surge Protector for Electronics and Computers

The Back-UPS battery backup offers guaranteed power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. Models supply battery backup during outages and unsafe voltage fluctuations, as well as provide protection from damaging surges and spikes. They're available in 'tower' or 'floor' styles, and together with a variety of standard features, they are the perfect choice to protect your data and keep you connected.

More from the Manufacturer

General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
BE600M1
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Back-UPS
Product Name
Back-UPS 600VA Tower UPS
Product Type
Standby UPS
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacles
  • 7 x NEMA 5-15R
  • 1 x USB
  • Number of Surge-only Outlets
    2
    Transfer Time
    6 ms
    Application/Usage
  • Electronic
  • Computer
  • Gaming Console
  • Security System
  • Television
  • Cable Box/DVR
  • Wireless Router
  • Modem
  • Wi-Fi Router
  • IOT Device
  • Network
  • Power Description
    Load Capacity
    600 VA/330 W
    Input Voltage
    120 V AC
    Input Voltage Range
    92 V AC - 139 V AC
    Output Voltage
    120 V AC
    Input Frequency
    50 Hz to 60 Hz
    Output Frequency
    50 Hz to 60 Hz
    Waveform Type
    Stepped Approximated Sine Wave
    Surge Energy Rating
    490 J
    Management
    Alarm
  • On Battery
  • Low Battery
  • Overload
  • Controls/Indicators
    Status Indicators

    LED Status Display:

    • On Line
    • On Battery
    • Replace Battery
    • Overload
    Battery Information
    Battery Characteristics
    Maintenance-free, Sealed, Leak-proof
    Battery Chemistry
    Lead Acid
    Battery Capacity
    237.6 kJ
    Backup/Run Time (Full Load)
    3.20 Minute
    Backup/Run Time (Half Load)
    11.80 Minute
    Typical Battery Recharge Time
    10 Hour
    Hot Swappable
    Yes
    Replaceable Battery
    Yes
    Environmental Conditions
    Maximum Operating Temperature
    104°F (40°C)
    Storage Temperature
    5°F (-15°C) - 113°F (45°C)
    Maximum Operating Elevation
    9842.52 ft
    Maximum Storage Elevation
    49212.60 ft
    Storage Relative Humidity
    0% - 95%
    Sound Emission
    35 dB(A)
    Thermal Dissipation
    4.69 W
    Physical Characteristics
    Height
    5.5"
    Width
    10.8"
    Depth
    4.1"
    Form Factor
    Tower
    Weight (Approximate)
    7.69 lb
    Miscellaneous
    Package Contents
    • Back-UPS 600VA Tower UPS
    • User Manual
    Energy Star
    Yes
    Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • REACH
  • CEC
  • Warranty
    Limited Warranty
    3 Year
