Designed to easily fit through standard doorways. The Network rack design enables faster deployment of network switches and an optimized rack mounting space designed specifically for cable and airflow management of large core networking switches and Storage Area Network (SAN) directors.
About
Designed to easily fit through standard doorways. The Network rack design enables faster deployment of network switches and an optimized rack mounting space designed specifically for cable and airflow management of large core networking switches and Storage Area Network (SAN) directors.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AR3140
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
NetShelter SX
Product Name

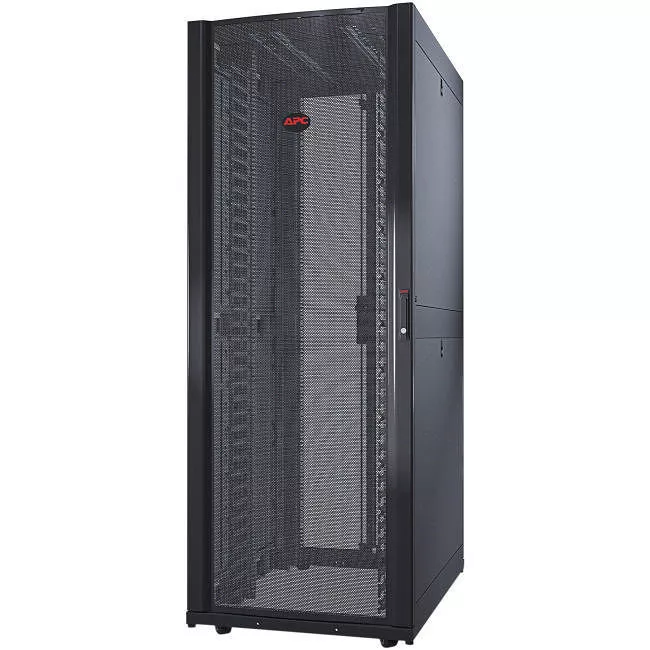

NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides
Product Type
Rack Cabinet
Technical Information
Front Rail
Yes
Rear Rail
Yes
Application/Usage
Features
Physical Characteristics
Form Factor
Floor Standing
Color Family
Black
Product Color
Black
Units Per Pallet
1
Dynamic/Rolling Weight Capacity
2254.73 lb
Static/Stationary Weight Capacity
3006.31 lb
Door Material Gauge
16
Rail Material Gauge
14
Roof/Top Material Gauge
18
Side Panel Material Gauge
18
Height
78.4"
Width
29.5"
Depth
42.1"
Weight (Approximate)
343.81 lb
Rack Height
42U
Rack Width
19"
Miscellaneous
Package Contents
- NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides
- Baying Hardware
- Documentation CD
- Key(s)
- Keyed-alike Doors and Side Panels
- Leveling Feet
- Mounting Hardware
- Pre-installed Casters
- Side Panels
- User Manual
- Vertical Cable Managers
Compatibility
Side-to-Side Airflow
Certifications & Standards
Free of Substances of Very High Concern above the threshold
Assembly Required
No
Product Take Back Program
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3140_ROHS_DECLARATION&p_FileName=AR3140KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65033694&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65033694&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
REACH free of SVHC
Yes
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
5 Year
Additional Warranty Information
5 year repair or replace
