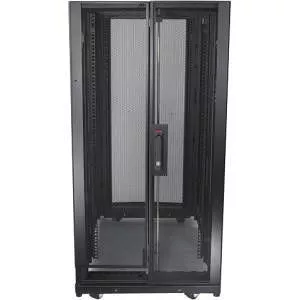

NetShelter SX 24U 600mm Wide x 1070mm Deep Enclosure - 1250 lbs. Shock Packaging
Feature-rich rack enclosure optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.
About
NetShelter SX 24U 600mm Wide x 1070mm Deep Enclosure - 1250 lbs. Shock Packaging
Feature-rich rack enclosure optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AR3104SP1
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
NetShelter
Product Name
NetShelter SX Enclosure
Product Type
Rack Cabinet
Technical Information
Application/Usage
Physical Characteristics
Color Family
Black
Product Color
Black
Units Per Pallet
1
Dynamic/Rolling Weight Capacity
2253.12 lb
Static/Stationary Weight Capacity
3004.90 lb
Door Material Gauge
18
Rail Material Gauge
14
Roof/Top Material Gauge
18
Side Panel Material Gauge
18
Height
47.2"
Width
23.6"
Depth
42.1"
Weight (Approximate)
196.41 lb
Rack Height
24U
Rack Width
19"
Miscellaneous
Package Contents
- NetShelter SX Enclosure Rack Cabinet
- Baying hardware
- Documentation CD
- Doors
- Installation guide
- Keyed-alike doors and side panels
- Leveling feet
- Mounting Hardware
- Pallet ramps
- Pre-installed casters
- Reusable packaging
- Roof
- Side Panels
- User Manual
Additional Information
EIA-310-E
- Standard Warranty: 5 Year Limited Repair/Replace
Compatibility
- 1U Servers
- 2/4U Servers
Certifications & Standards
Free of Substances of Very High Concern above the threshold
Environmentally Friendly
Yes
Environmental Certification
RoHS
Green Premium
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3104SP1_ROHS_DECLARATION&p_FileName=AR3104SP1KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760060&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760060&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008_V1
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_V1
REACH free of SVHC
Yes
Toxic Heavy Metal Free
Yes
Warranty
Limited Warranty
5 Year
Additional Warranty Information
5 year repair or replace
