About
Specifications
The APC step-down transformers are used to convert a higher input voltage (208V-200V) to a lower output voltage (120V-100V) which might be more fitting for certain environments or system configurations.
About
The APC step-down transformers are used to convert a higher input voltage (208V-200V) to a lower output voltage (120V-100V) which might be more fitting for certain environments or system configurations.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP9628
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name

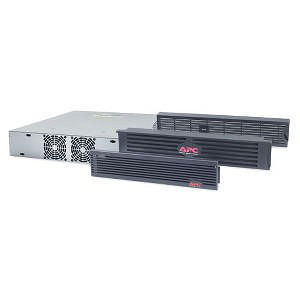

5000VA Step-Down Rack-mountable Transformer
Packaged Quantity
1 Each
Product Type
Step Down Transformer
Technical Information
Power Rating
5000 VA
Input Receptacle Type
Hard Wire 3-wire (2PH + G)
Output Receptacle Type
Hard Wire 3-wire (H+N+E)
Output Receptacle Detail
1 x Hard Wire 3-wire (H+N+E)
Power Description
Input Voltage
208 V
Output Voltage
120 V AC
Maximum Line Current
26 A
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Mounting Location
Front
Mounting Preference
No Preference
Rack Height
2U
Height
3.5"
Width
17.5"
Depth
24"
Weight (Approximate)
95.20 lb
Miscellaneous
For Country/Region
United States
Package Contents
Certifications & Standards
CSA|UL Listed
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
Mercury Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP9635_ROHS_DECLARATION&p_FileName=AP9635KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759642&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759642&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
Lead Free
Yes
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
