APC-AP7599-00
MPN: AP7599

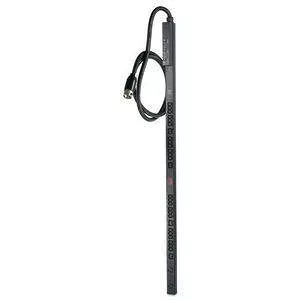

APC AP7599 Rack PDU,Basic, Zero U,14.4kW,208V,(24)C13,(4)C19,(2)L6-30R;10' Cord

Highlights
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP7599
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Basic Rack
Product Name
Basic Rack 14.4kW PDU
Product Type
PDU
Technical Information
PDU Type
Basic
Plug/Connector Type
Hubbell CS8365C
Receptacle Type
  • NEMA L6-30R
  • IEC 60320 C19
  • IEC 60320 C13
    • Receptacle Detail
  • 2 x NEMA L6-30R
  • 4 x IEC 60320 C19
  • 24 x IEC 60320 C13
    • Protection Type
    Overload Protection
    Power Description
    Input Voltage
    208 V
    Output Voltage
    208 V AC
    Power Rating (VA)
    14.40 kVA
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Mount Type
    Rack-mountable
    Rack Height
    0U
    Cord Length
    10 ft
    Height
    70"
    Width
    2.2"
    Depth
    3.7"
    Weight (Approximate)
    21.74 lb
    Miscellaneous
    Package Contents
  • Basic Rack 14.4kW PDU
  • Cord retention bracket(s)
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Toolless mounting kit
    • Additional Information
    • Low Cost Power Distribution
    • Multi-Branch Power Input
    • Toolless Mounting Capability
    • Vertical Mounting Capability
    Certifications & Standards
    cUL Listed|CSA|METI Denan|UL Listed
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Green Premium
    Yes
    Optimized Energy Efficiency
    Yes
    Product Take Back Program
    Yes
    REACH free of SVHC
    No
    Lead Free
    Yes
    REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759146&lang=en-us
    EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759146&lang=en-us
    Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN
    End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
    Warranty
    Limited Warranty
    2 Year
    Additional Warranty Information
    2 years repair or replace
