APC-AP7567A-00
MPN: AP7567A

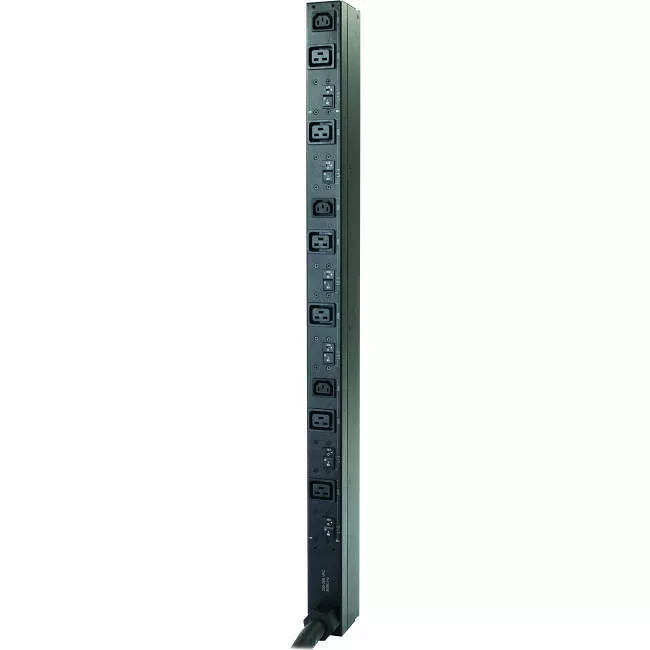

APC AP7567A Rack PDU, Basic, Zero U, 14.4kW, 208 V, (6) C19 & (3) C13, High Temp

Highlights
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP7567A
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
Schneider Electric
Product Name
Basic Rack PDU for Blade Servers 10-Outlets
Product Type
PDU
Technical Information
PDU Type
Basic
Plug/Connector Type
CS8365C
Plug/Connector Detail
1 x CS8365C
Receptacle Type
  • IEC 60320 C13
  • IEC 60320 C19
    • Receptacle Detail
  • 3 x IEC 60320 C13
  • 6 x IEC 60320 C19
    • Protection Type
    Overload Protection
    Power Description
    Input Voltage
    230 V AC
    Output Voltage
    208 V AC
    Power Rating (Watt)
    14.40 kW
    Input Current
    40 A
    Physical Characteristics
    Mounting Orientation
    Vertical
    Mount Type
    Rack-mountable
    Rack Height
    0U
    Height
    30.4 ft
    Width
    21.7"
    Depth
    34.6"
    Weight (Approximate)
    13.12 lb
    Miscellaneous
    Package Contents
  • Basic Rack PDU for Blade Servers 10-Outlets
  • Cord retention bracket(s)
  • Installation guide
  • Rack mounting brackets
  • Toolless mounting kit
    • Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    2 Year
