Highlights:
- Product Type: PDU
- Output Receptacles: 6 x IEC 60320 C19
- Output Voltage: 208 V AC
- Rack Height: 1U
- Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
- Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections
- Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip
- Low Cost Power Distribution: Provides a number of outlets to bring power to rack equipment at an affordable price
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP7516
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Basic Rack
Product Name

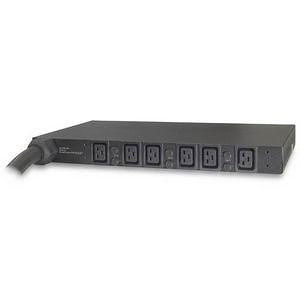

Basic Rack 14.4kW 40A PDU
Product Type
PDU
Technical Information
PDU Type
Basic
Input Receptacles
Hubbell CS8365C
Output Receptacles
6 x IEC 60320 C19
Protection Type
Overload Protection
Power Description
Input Voltage
230 V AC
Output Voltage
208 V AC
Power Rating (Watt)
14.40 kW
Physical Characteristics
Mount Type
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
10"
Weight (Approximate)
17.55 lb
Miscellaneous
Package Contents
- Basic Rack 14.4kW 40A PDU
- Installation Guide
Warranty
Limited Warranty
2 Year
