Highlights:
  • Product Type: Automatic Transfer Switch
  • Plug/Connector Type: NEMA L6-20P
  • Output Voltage: 230 V AC
  • Rack Height: 1U
Contact sales for pricing

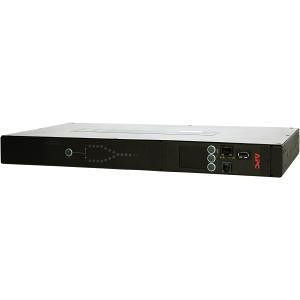

Rack-mount Transfer Switches

Provides redundant rack mount power to single-corded equipment.

APC Rack Automatic Transfer Switches (rack ATS) provide reliable, redundant rack mount power to single-corded equipment. The rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. The Rack ATS has built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP4430
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
Schneider Electric
Product Series
ATS
Product Name
ATS 9-Outlet Automatic Transfer Switch
Product Type
Automatic Transfer Switch
Technical Information
Plug/Connector Type
NEMA L6-20P
Receptacles
  • 8 x IEC 60320 C13
  • 1 x IEC 60320 C19
  • Power Description
    Input Voltage
    230 V AC
    Output Voltage
    230 V AC
    Current
    20 A
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17"
    Depth
    9.3"
    Weight (Approximate)
    10.65 lb
    Miscellaneous
    Package Contents
    • ATS 9-Outlet Automatic Transfer Switch
    • Mounting Hardware
    • Rack Mounting Brackets
    • RS-232 Configuration Cable
    Certifications & Standards
    • EN 55022 Class A
    • FCC Part 15 Class A
    Warranty
    Limited Warranty
    2 Year
