Close-coupled, air, water, and glycol cooling for closets, server rooms, and data centers.
About
Close-coupled, air, water, and glycol cooling for closets, server rooms, and data centers.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
ACRP102
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
InRow RP
Product Name

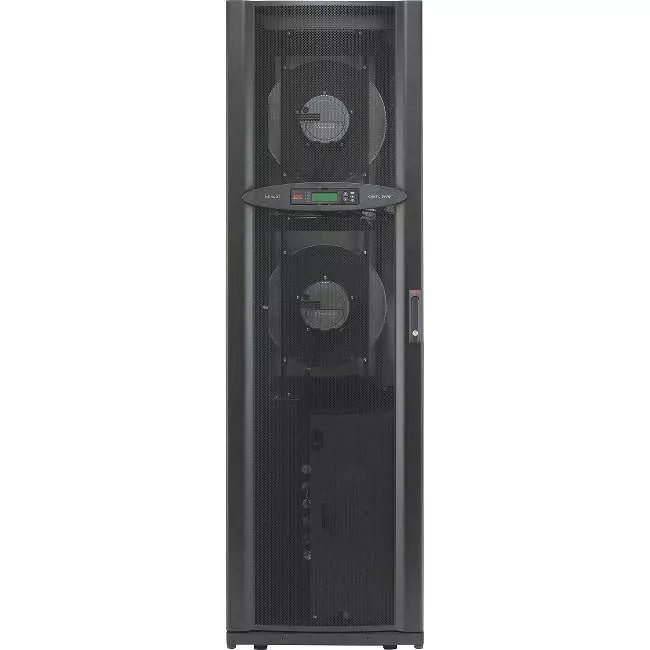

InRow RP Cooling System
Product Type
Cooling System
Physical Characteristics
Product Color
Black
Height
78.4"
Width
23.6"
Depth
42.1"
Weight (Approximate)
833 lb
Miscellaneous
Package Contents
- InRow RP Cooling System
- Installation Guide
- Operations and Maintenance Manual
Additional Information
- Nominal Cooling Capacity: 29 kW
- Coolant: R407C
- Entering Air Relative Humidity: 32.0%
- Entering Air Temperature: 85.0 °F (29.44 °C)
- Humidification Value: 6.60 pounds/hour
- Compressor Type: Reciprocating
- Air Discharge Patterns: Horizontal
- Intake Air: Rear Return
- Air Flow: 4800.0 CFM (2265.34 lps)
- Condensate Pump Capacity: 8.450 gal/hour (0.008 lps)
- Nominal Input Voltage: 380 (3PH),400 (3PH)
- Input Power: 20 kW
- Rack Height: 42U
- Input Connections: Hard Wire 4-wire (3PH + G)
- Control Panel: Multi-function LCD Status and Control Console
- Audible Alarm: Audible and Visible Alarms Prioritized by Severity
Environmentally Friendly
Yes
Environmental Compliance
Warranty
Limited Warranty
1 Year
