APC-ACCD75216-00
MPN: ACCD75216

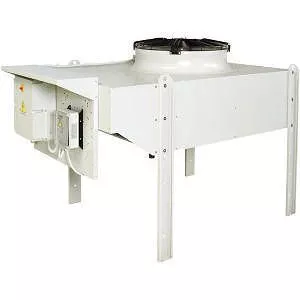

APC ACCD75216 Condenser 1 Fan, Single Circuit, 1.2MBH /1C TD, 400/3/50 FSC

Highlights
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
ACCD75216
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name
Airflow System Condenser
Packaged Quantity
1
Product Type
Airflow System Condenser
Physical Characteristics
Height
35"
Width
35.4"
Depth
35.4"
Weight (Approximate)
105.82 lb
Miscellaneous
Additional Information
  • Close-coupled, air, water, and glycol cooling for closets, server rooms, and data centers.

Direct drive motors
  • Stress on bearings is nearly eliminated, increasing useful life. Allows integral fan/motor assembly to be factory balanced, which lowers vibration and expedites startup.
General
  • Refrigerant: R410A
  • Air Flow: 4530 CFM
Input
  • Nominal Input Voltage: 400V 3PH
  • Input Power: 900 Watts
  • Input Frequency: 50 Hz
Physical
  • Maximum Height: 890.00 mm
  • Maximum Width: 900.00 mm
  • Maximum Depth: 900.00 mm
  • Net Weight: 48.00 KG
Warranty
Limited Warranty
1 Year

Specifications
