With quality cinematic graphics moving at incredible speed, the All-in-Wonder X800 XL delivers an unequaled array of TV, DVD, FM radio, audio and video features for home-theater, video editing and gaming-all supported by a sophisticated wireless remote.
About
With quality cinematic graphics moving at incredible speed, the All-in-Wonder X800 XL delivers an unequaled array of TV, DVD, FM radio, audio and video features for home-theater, video editing and gaming-all supported by a sophisticated wireless remote.
Specifications
General Information
Manufacturer
Advanced Micro Devices, Inc
Manufacturer Part Number
100-714301
Manufacturer Website Address
http://www.amd.com
Brand Name
AMD
Product Line
All-In-Wonder
Product Name

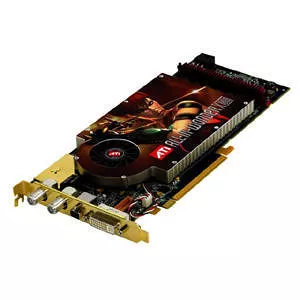

All-in-Wonder X800 XL Graphics/TV/FM Tuner Card
Product Type
Graphic Card
Technical Information
Analog Signal
Yes
Digital Signal
Yes
API Supported
Video Signal Format
NTSC
Number of Monitors Supported
2
FM Tuner
Yes
Processor & Chipset
Chipset Manufacturer
ATI
Chipset Line
Radeon
Chipset Model
X800 XL
GPU Clock
400 MHz
Memory
Standard Memory
256 MB
Memory Technology
GDDR3
Bus Width
256 bit
Interfaces/Ports
Host Interface
PCI Express x16
VGA
Yes
Number of VGA Outputs
1
Audio Line Out
Yes
S-Video
Yes
Number of S-Video Inputs
1
Number of S-Video Outputs
1
Composite Video
Yes
Number of Composite Video Inputs
1
Number of Composite Video Outputs
1
Software
Software Included
- Pinnacle Studio 9 ATi Version
- Matchware Mediator 8.0
- Muvee AUTOPRODUCER
- Gudie Plus+
- Visual Communicator Web
Miscellaneous
Package Contents
- All-in-Wonder X800 XL Graphics/TV/FM Tuner Card
- Remote Wonder Plus wireless remote control
- Input, output and HDTV connections
- FM radio antenna
- Installation CD
- S-video cable
- Composite video cable
Additional Information
- Pipelines: 16
- EazyLook
- Hydravision
System Requirements
- Intel Pentium 4/Celeron, AMD Athlon
- Compatible with a PCI Express x16 lane graphics slot
- 128MB of system memory (256MB or higher recommended)
- Installation software requires CD-ROM drive
- DVD playback requires DVD drive
- Interactive Program guide requires Internet connection for listing updates
- Remote control receiver requires available USB port
- 1.0GHz minimum processor speed for MPEG-2 video capture
- 3.0GHz or equivalent minimum CPU is recommended for software encoding requirements of Windows Media Center
- Requires connection to your PC's internal power supply for operation. A 300W power supply or greater is recommended in cases where several other internal devices are installed
TV Tuner Requirements:
- TV signal from amplified antenna or cable Version included for: NTSC (North America, Japan and Latin America2)
- MulTView requires an additional ATi PCI TV Wonder card, compatible motherboard and sound card
OS Supported:
- Windows XP (Home or Professional)
- Windows XP Media Center Edition 2005
Platform Supported
PC
Warranty
Limited Warranty
3 Year
