AJA-OG-2X4-SDI-DA-00
MPN: OG-2X4-SDI-DA

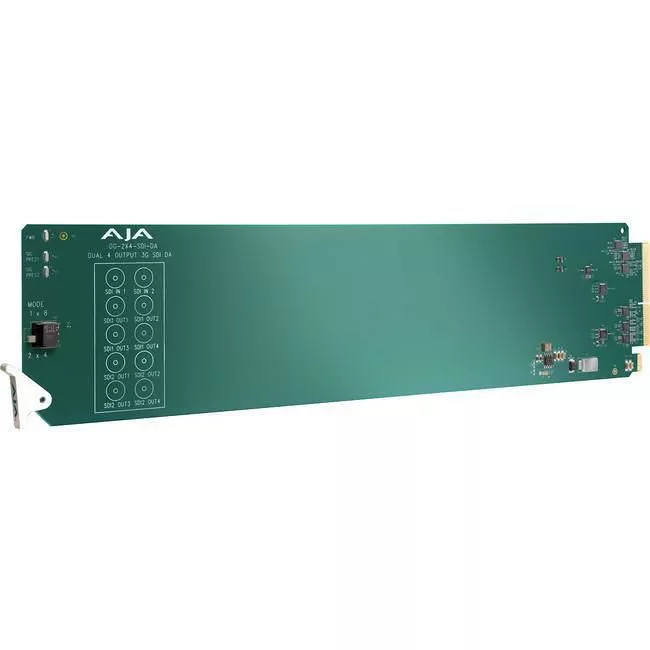

AJA OG-2X4-SDI-DA Dual 1x4 3G-SDI Distribution Amplifier

Highlights
The OG-2x4-SDI-DA is an openGear-compatible, state of the art 3G-SDI distribution amplifier. The incoming 3G-SDI signals on the 2 input channels are reclocked and distributed to 4 x 3G-SDI outputs each, or alternatively can function as a 1 x 8-Channel DA, allowing the same signal to be sent to eight destinations simultaneously. This dual input capability allows double the number of DAs in limited frame space. A 10 BNC rear Open Gear connector module is included.

Features

  • Input: 2 x 3G-SDI, BNC connector (2 x 4 mode)
  • 1 x 3G-SDI, BNC connector (1 x 8 mode)
  • Outputs: 4 x 3G-SDI each DA, BNC connector (2 x 4 mode)
  • 8 x 3G-SDI, BNC connector (1 x 8 mode)
  • Automatic cable equalizer and automatic reclocker bypass
  • Automatic detection and reclocking of 270Mb, 1.5Gb, and 3Gb SDI data rates
  • Advanced jitter input tolerance and low jitter reclocked outputs
  • Power: 2.0 watts max per card
  • Hot swap capable
  • Compatible with DFR-8321 and OG3 openGear frames

Connectivity

The 3G-SDI inputs are equalized and re- clocked with best-in-class cable length capability and input jitter tolerance. SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. Two SDIs input and 8 SDI outputs are provided. A 10-BNC rear openGear connector module is included.

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

Industry-Leading Support

AJA's technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

OpenGear products are covered by a generous five year international warranty.

AJA Mini-Matrix

Information on the complete line of AJA Rackframes and cards are now available in the Mini-Matrix mobile app on iOS. AJA product are extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
