AJA-IPT-1G-SDI-R0-00
MPN: IPT-1G-SDI-R0

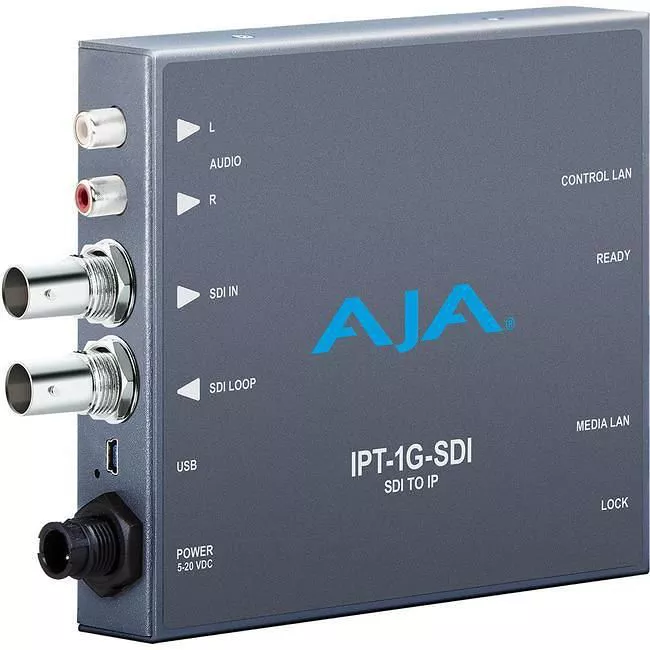

AJA IPT-1G-SDI-R0 3G-SDI to JPEG 2000 IP Video and Audio Mini-Converter

Highlights

Bridging from SDI Video and Audio to TR-01 Compliant JPEG 2000 over IP, the IPT-1G-SDI is a 3G-SDI to VSF TR-01 (and other JPEG 2000 formats) converter suited for video ingest from SDI based cameras, routers and digital recorders and players and distribution across an IP network for feeding to IPR-1G-SDI, IPR-1G-HDMI or KONA IP receivers.

Features

Key Features:

  • 1 x 3G-SDI BNC input with 4:2:2 10-bits/pixel
  • 1 x 3G-SDI BNC loop through out with 4:2:2 10-bits/pixel
  • Essence support: VSF TR-01 and other JPEG 2000 MPEG-2 workflows
  • Rugged, fanless design
  • Audio input via embedded 3G-SDI or analog RCA (selectable)
  • Full 10-bit pixel processing pipeline
  • Network (LAN) control and status
  • Quick network setup with AJA eMini-Setup software

User Control

IPT-1G-SDI provides two key ports for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The USB 2.0 mini connector facilitates quick and simple firmware updates.

  • 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet control input
  • HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
  • Web and REST clients supported
  • 1x USB 2.0 Mini-B connector
  • AJA eMini-Setup software setup of network parameters
