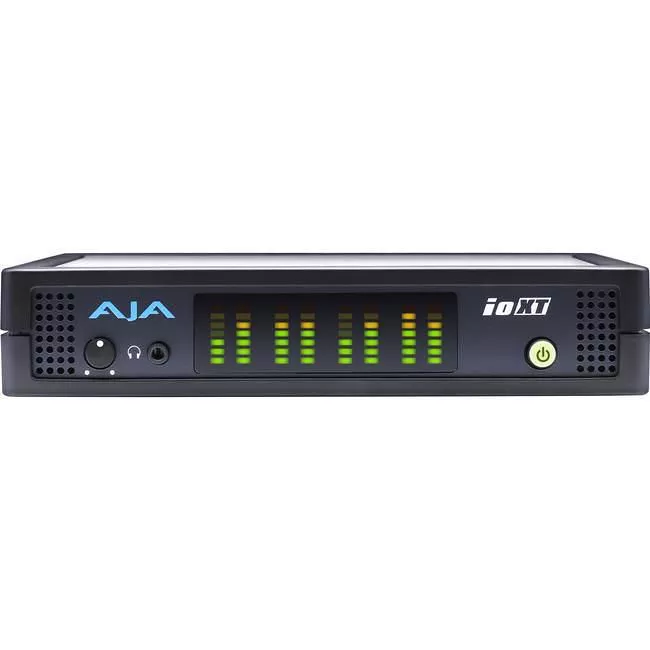

AJA IOXT-R0 10-bit 3G/Dual Link/HD/SD I/O via Thunderbolt
Io XT is the ideal portable companion for lightning fast video capture and playback for professional post production and on set applications.
Compact, portable and powerful, Io XT is loaded with high-end features including 3G/Dual Link/HD/SD-SDI, Component Analog, and HDMI connectivity, to bring true desktop level power to any Thunderbolt enabled system, with full uncompressed HD and SD 4:2:2 and 4:4:4 capable video and audio connectivity.
Thunderbolt Solutions from AJA
Bring more power, speed and simplicity to your workflows with Thunderboltâ„¢ solutions from AJA.
Compact professional editing without compromise
Apple's latest generation computers feature powerful Thunderboltâ„¢ interfaces, offering a mind-blowing 10Gbps available bandwidth. Taking advantage of this new interface, Io XT is the ideal portable companion for lightning-fast video capture and playback for professional post production and on set applications.
Compact, portable and powerful, Io XT is loaded with high-end features including 3G/Dual Link/HD/SD-SDI, Component Analog and HDMI connectivity, to bring true desktop-level power to any Thunderboltâ„¢-enabled Mac or PC, with full uncompressed HD and SD 4:2:2 and 4:4:4 capable video and audio connectivity.
Thunderboltâ„¢
"daisy-chaining"
Io XT connects to your Mac or PC with a single Thunderboltâ„¢ cable and provides a second Thunderboltâ„¢ connector for daisy-chaining other devices, such as storage or displays, making it perfect for on set, or in the edit suite.
Disconnecting a device in the middle of a Thunderboltâ„¢ chain will disconnect all devices that come after it. On some jobs, the drive array may be moved frequently, so it would be best to have that at the end of the chain, while other times it may be a monitor that is being removed periodically. Io XT's dual Thunderboltâ„¢ ports ensure that no matter what configuration you need, the system can continue to operate without interruption.
RS-422 Control
The RS-422 connection on Io XT enables control of external decks and other recording devices directly from within your software application of choice. Capture clips directly off tape and layoff sequences all frame-accurately without the need for a separate device control adapter.
Professional Connectivity
Io XT can handle whatever equipment you are working with. With a full compliment of 3G/HD/SD- SDI and HDMI I/O, HD/SD analog video output, reference and LTC inputs, and digital and analog audio, Io XT opens up new possibilities for what can be considered a professional editing system. No longer confined to deskside tower systems, the combination of Io XT and smaller systems such as an iMac, Mac mini or HP zBook has all the capability and connectivity of a larger system that can be easily transported as needed.
