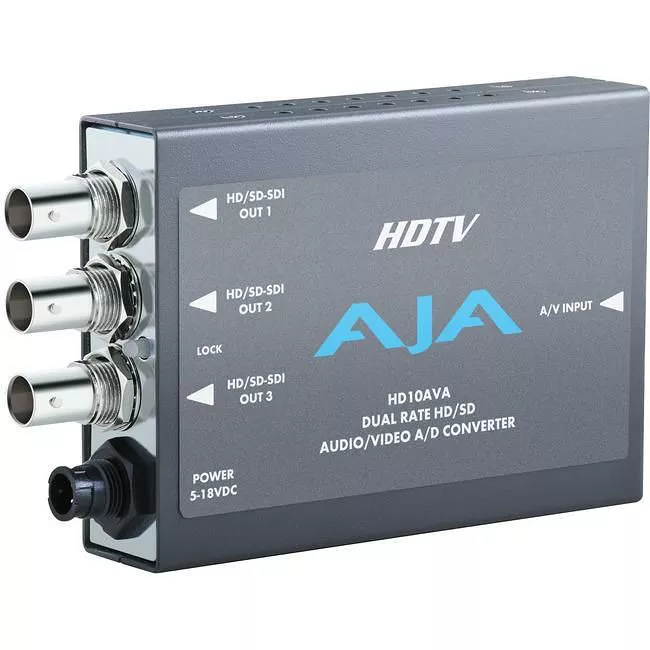

AJA HD10AVA-R0 HD/SD Audio/Video, Analog/Digital Mini-Converter
The HD10AVA is a miniature, high-quality, audio/video, HD/SD A/D converter. The HD10AVA automatically detects the video input format and embeds the audio inputs in the SD/HD-SDI outputs. The HD10AVA is useful for adding an SD/HD-SDI audio/video output to tape decks or any professional video equipment with analog outputs. The HD10AVA is especially useful for adding HD-SDI outputs to most HDV cameras or decks by using the component outputs of such devices. The HD10AVA uses a breakout cable for audio/video inputs and provides 3 SD-HD-SDI outputs on BNCs.
HD/SD Analog Composite or Component Video and 4 Ch Analog Audio to SD/HD-SDI w/Embedded Audio
The HD10AVA is a miniature, high-quality, audio/video, HD/SD A/D converter. The HD10AVA automatically detects the video input format and embeds the audio inputs in the HD/SD-SDI outputs. The HD10AVA is useful for adding an HD/SD-SDI audio/video output to tape decks or any professional video equipment with analog outputs. The HD10AVA is especially useful for adding HD-SDI outputs to most HDV cameras or decks by using the component outputs of such devices. The HD10AVA uses a 3x BNC, 4x XLR breakout cable (included) for audio/video inputs and provides 3 HD/SD-SDI on BNCs.
Note: The HD10AVA does not up or down convert between HD and SD.
Supplied Breakout Cable
Additonal connections available on included breakout cable.
Features
- High-quality SD/HD audio/video A/D converter
- SD component, composite or Y/C video input
- HD analog component video input
- Four channel balanced analog audio input
- 3 SD/HD-SDI with embedded audio outputs
- 12-bit video, 24-bit audio A/Ds
- Automatic multi-standard
- External dip switch configuration
- 5-18V power
