AJA-HA5-12G-R0-00
MPN: HA5-12G-R0

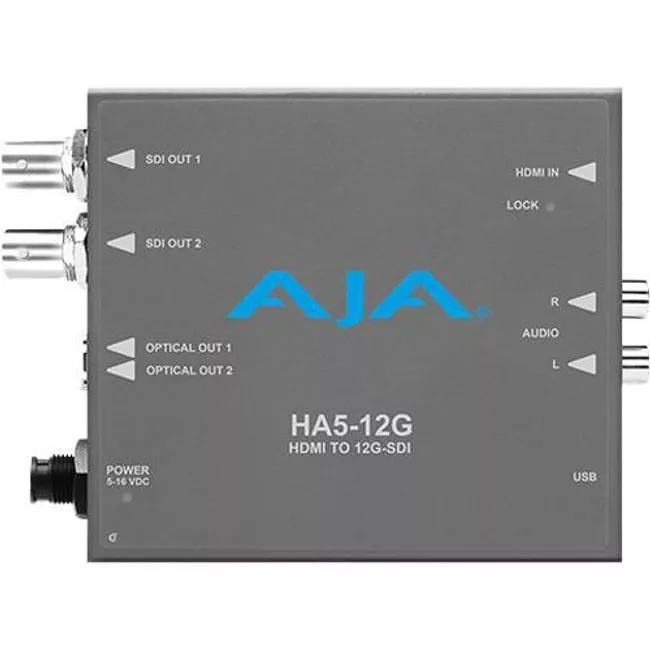

AJA HA5-12G-R0 HDMI 2.0 to 12G-SDI Converter

Highlights

AJA's HA5-12G allows users to convert an HDMI 2.0 input to two 12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI.

Fiber SFP equipped HA5-12G models are available (please see separate listings), including the HA5-12G-T single channel transmitter, which extends HDMI source 4K signals over long distances (10 km Single Mode). The HA5-12G-2T dual channel transmitter offers two 12G-SDI coaxial outputs and two 12G-SDI over Fiber outputs to simultaneously enable HDMI 4K source extension to multiple locations without a distribution amplifier.

Features

  • Converts HDMI 2.0 to 12G-SDI, up to 4K 60p
  • Supports up to 60p input at 4:4:4/4:2:2/4:2:0
  • Supports 2SI (two sample interleave) 4K/UltraHD SDI mapping
  • Two 12G-SDI outputs
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • Fiber SFP models available
  • Configure via USB port and supplied Mini-Config software
  • Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty

HA5-12G Workflow

UltraHD HDMI 2.0 Source with 2x 12G-SDI Destinations

HA5-12G-T

12G-SDI to HDMI 2.0 Conversion with Fiber Transmitter

  • Convert an HDMI 2.0 input with up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA) to two 12G-SDI single link outputs with eight or two channels of digital embedded audio
  • Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
  • Transmits two DA 12G-SDI signals on each SDI output, reducing cable runs when transporting 4K/UltraHD SDI
  • Includes a single channel Fiber 12G LC transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
  • HA5-12G-T ships with FiberLC-1T-12G SFP installed
  • Includes a DWP-U power supply and USB port for firmware updates
  • Five year warranty

HA5-12G-T Workflow

UltraHD HDMI 2.0 Source with 1x 12G-SDI and 1x UltraHD HDMI 2.0 Destinations

HDR

HDR, or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more 'dynamic' look and allows for natural true to life colors to be communicated to your audience.

HA5-12G provides support for analyzing HDR infoframe data coming in over HDMI when used with AJA Mini-Config software.
