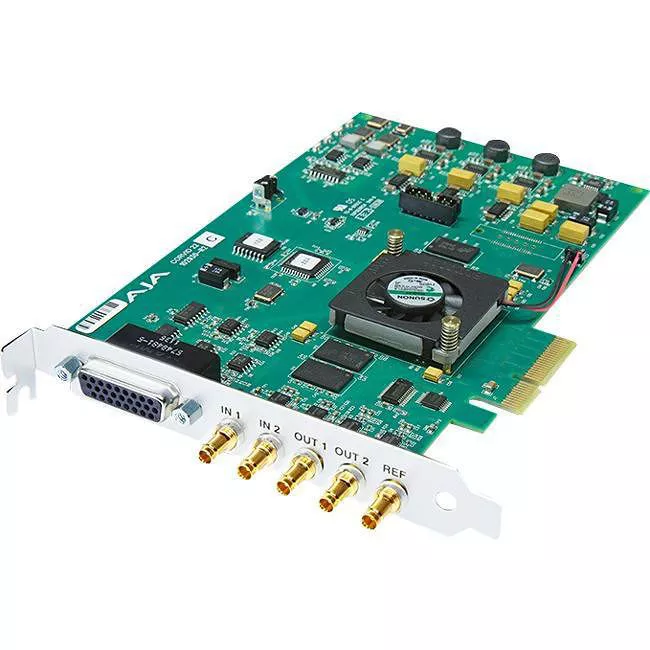

AJA CORVID 22-NC1 4-lane PCIe card, 2-in/2-out HD/SD/3G SDI

MPN: CORVID 22-NC1
AJA-CORVID 22-NC1-00
Highlights
  • Product Type: Video Capturing Device
  • Maximum Resolution: 2048 x 1080
  • Host Interface: PCI Express 1.0 x4
  • Form Factor: Plug-in Card
AJA-CORVID 22-NC1-00
AJA-CORVID 22-NC1-00

AJA CORVID 22-NC1 4-lane PCIe card, 2-in/2-out HD/SD/3G SDI

MPN: CORVID 22-NC1
Highlights
  • Product Type: Video Capturing Device
  • Maximum Resolution: 2048 x 1080
  • Host Interface: PCI Express 1.0 x4
  • Form Factor: Plug-in Card

PCIe Gen 1.0 4x Card for 8/10-bit Uncompressed with 2 Channels I/O Digital 3G, HD, SD-SDI I/O

Get multiple I/O channels without taking up a lot of space. Corvid 22 provides high performance, dual channel video and embedded 24-bit audio I/O in a single PCIe card. Two completely independent channels handle resolutions up to 2K and high frame rate 3G as well. With separate LTC and RS-422 machine control per channel and support for multiple operating systems, Corvid 22 gives you all the performance and capabilities you need.

Features

  • PCI Express 4-lane
  • 2 Channels 3G, HD-SDI or SD-SDI Input, 2 Channels 3G, HD-SDI or SD-SDI Output
  • All SD/HD/2K x 1080 Video Formats
  • 3G Input/Output for 1080p 50/60 and Video/Key (dual link not supported)
  • 8/10-Bit YCbCr and RGB frame buffer formats
  • 2 Mixer/Keyer widgets. This allows output of two simultaneous video/key pairs over 3G. It also allows for up to two simultaneous downstream keyers.
  • 2 Independent 16-Ch 48 kHz SDI Embedded Audio I/O engines
  • Analog Color Black or HD Tri-Level Sync
  • Three year warranty

Powerful Platforms for Development Partners

AJA's Developer Program allows partner companies to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.
