AJA-4K2HD-R0-00
MPN: 4K2HD-R0

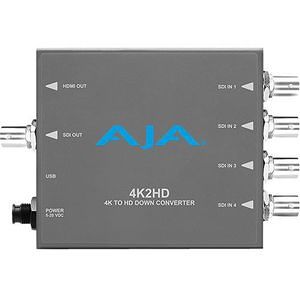

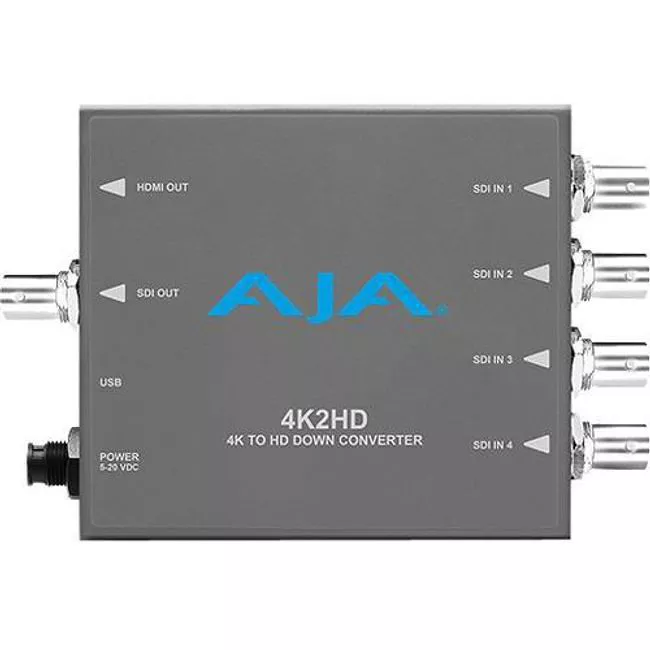

AJA 4K2HD-R0 4K to HD down-conversion

Highlights

AJA's 4K2HD down-converts professional SDI 4K/UltraHD signals to HD resolution using AJA's high-quality scaling for cost-effective monitoring and conversion. 4K2HD's HD-SDI and HDMI outputs are both live all the time, producing fantastic-looking HD images for on set monitoring or direct-to-air broadcast. 4K2HD outputs SDI and HDMI simultaneously. 4K2HD supports high frame rate (HFR) 4K inputs at 50 and 60fps and gets converted to HD outputs at 50 and 60fps for accurate viewing. 4K2HD's configuration options can extract an HD resolution image from the 4K input to provide a one-to-one pixel image for 4K focus checks on HD displays. Configuration can be set remotely via AJA MiniConfig software control over USB.

Real time downconversion

4K2HD uses real time processing and AJA's high-quality scaling algorithms to downconvert professional 4K or UltraHD signals using 4 × SDI connections to HD resolution, producing fantastic-looking HD images for on set monitoring or direct-to-air broadcast.

Simultaneous HD-SDI and HDMI outputs

4K2HD's HD-SDI and HDMI outputs are live all the time, allowing use of both professional SDI monitors as well as low-cost HDMI monitors simultaneously. No matter what monitors you have on hand, 4K2HD can use them for on the spot 4K viewing.

High frame rate support

Many 4K productions are opting for higher frame rates of 50 and 60fps. 4K2HD supports high frame rate (HFR) 4K inputs and converts the HD output to a matching frame rate for accurate viewing so what you shoot is what you see.

Center-cut extraction

4K2HD can be configured to extract an HD resolution center cut from the 4K input. This provides a one-to-one pixel image that can be used to check focus on 4K shoots without the need for a full 4K monitor.

Features

  • 4K (4096x2160) and UltraHD (3840x2160) support
  • Downconversion for supporting 4K on HD-SDI and HDMI devices
  • Simultaneous HD-SDI and HDMI output
  • Aspect ratio conversion from full 4K to HD
  • Supports 4K/UltraHD 50/60fps high-framerate input formats
  • Configurable via AJA MiniConfig software for Mac and PC
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • five year warranty
