AES inputs are sample rate converted to a 48 KHz rate synchronous to the video input. The 3G-AM automatically detects and configures to the input video standard.
- 3G-SDI Embedder/Disembedder
- 8-Channel AES I/O
- Supplied breakout cables for balanced AES - XLR connectors
- USB connectivity via AJA MiniConfig software
- Dipswitch configuration
- 5-20VDC Power
Choice of Supplied Breakout Cable
Order 3GAM with either a XLR or BNC breakout cable.
Specify 3G-AM-XLR for XLR connectivity or 3G-AM-BNC if you prefer BNC connectors for AES audio needs.
USB and Mini-Config Support
AJA's free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

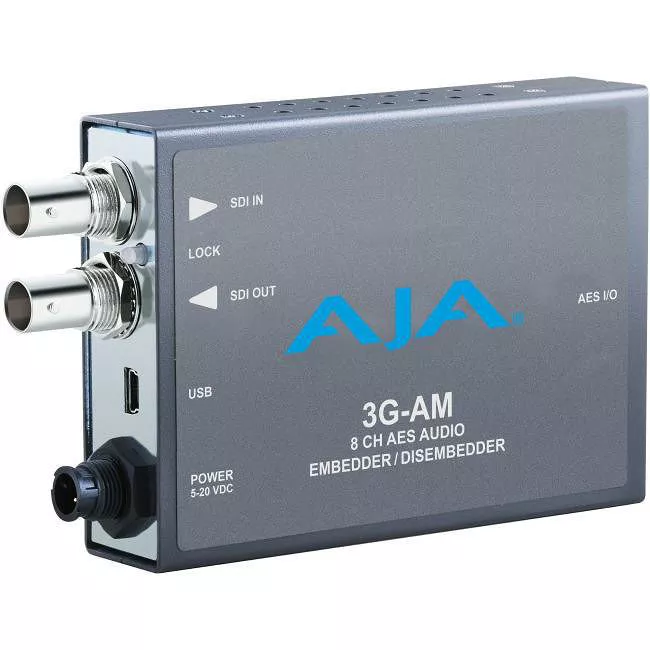

- 3G-AM 3G-SDI 8-Channel AES Embedder/Disembedder
- Power Supply
- BNC Breakout Cable
