ABOUT

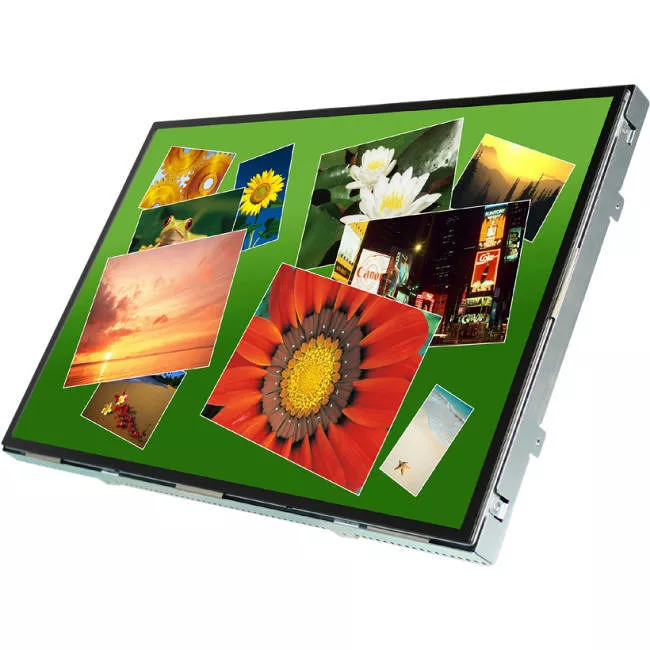

The 22-inch 3M Multi-Touch Display C2254PW combines a 3M Projected Capacitive touchscreen that delivers an ultra-fast, accurate, and precise 10 finger touch response, with a high-definition, wide viewing angle LCD, to create a multi-touch chassis for your next generation interactive application. The rugged all steel frame and a highly-durable glass front surface provide the durability needed for demanding public use environments.
See More
SPECIFICATIONS
General Information
Manufacturer
3M
Manufacturer Part Number
98-0003-3601-0
Manufacturer Website Address
http://www.3m.com
Brand Name
3M
Product Model
C2254PW
Product Name
C2254PW Touchscreen LCD Monitor
Product Type
LCD Touchscreen Monitor
Technical Information
Screen Size
22"
Screen Mode
WSXGA+
Response Time
8 ms
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Video
Maximum Resolution
1680 x 1050
Color Supported
16.7 Million Colors
Contrast Ratio
1,000:1
Brightness
300 Nit
Touchscreen Information
Touchscreen
Yes
Touchscreen Type
Capacitive
Multi-touch Screen
Yes
Interfaces/Ports
DVI
Yes
USB
Yes
VGA
Yes
Power Description
Standby Power Consumption
80 W
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
Height
12.9"
Width
19.7"
Depth
2"
Weight (Approximate)
33.95 lb
Miscellaneous
Certifications & Standards
- CC-B
- CE
- TUV
- CCC
Platform Supported
PC
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
1 Year
