Highlights:
- Maximum Resolution: 1680 x 1050
- Brightness: 250 Nit
- Contrast Ratio: 1,000:1
- Platform Supported: PC | Mac

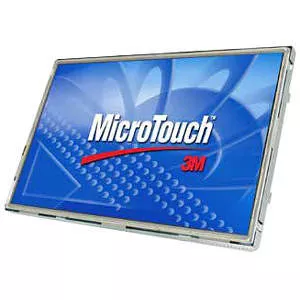

The 22-inch 3M MicroTouch Display C2234SW, a robust metal chassis display using 3M's industry-standard surface capacitive touch technology, provides a durable, optically-enhanced, and engaging large form factor display for use in industrial automation equipment and kiosk enclosures. The C2234SW display offers multiple mounting options to make integration easy. A remote on-screen display module helps simplify any changes to the display image during installation or system maintenance.
General Information
Manufacturer
3M
Manufacturer Part Number
98-0003-3598-8
Manufacturer Website Address
http://www.3m.com
Brand Name
3M
Product Line
MicroTouch
Product Model
C2234SW
Product Name
MicroTouch C2234SW Touchscreen LCD Monitor
Product Type
LCD Touchscreen Monitor
Technical Information
Screen Size Class
22"
Viewable Screen Size
22"
Screen Mode
WSXGA+
Response Time
5 ms
Aspect Ratio
16:10
Horizontal Viewing Angle
170°
Vertical Viewing Angle
160°
Video
Maximum Resolution
1680 x 1050
Color Supported
16.7 Million Colors
Contrast Ratio
1,000:1
Brightness
250 Nit
Touchscreen Information
Touchscreen
Yes
Touchscreen Type
Capacitive
Interfaces/Ports
DVI
Yes
USB
Yes
VGA
Yes
Serial Port
Yes
Power Description
Operating Power Consumption
40 W
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
Height
12.9"
Width
19.7"
Depth
2"
Weight (Approximate)
14.11 lb
Miscellaneous
Package Contents
- C2234SW Touchscreen LCD Monitor
- DVI Cable
- VGA Video Cable
- USB Touch Cable
- Serial Touch Cable
- Power Supply
Certifications & Standards
- FCC-B
- CE
- TUV
- CCC
Platform Supported
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
