ABOUT
Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. High 95% efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation and output power availability. Audible alarm with push-button momentary alarm-cancel. Programmable self-test. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.
See More
SPECIFICATIONS
General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
SU1500RTXL2UN
Manufacturer Website Address
http://www.tripplite.com
Brand Name
Tripp Lite
Product Line
SmartOnline
Product Model
SU1500RTXL2UN
Product Name

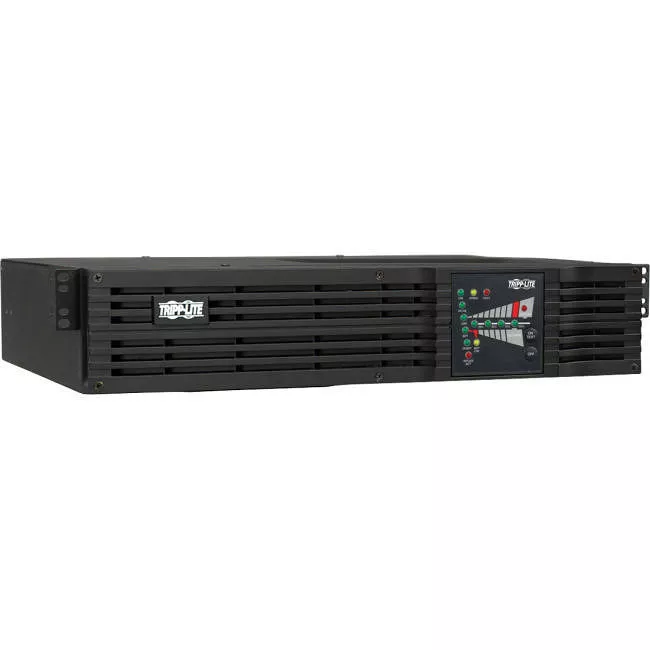

SU1500RTXL2UN UPS with Pre-installed SNMPWEBCARD
Product Type
Dual Conversion Online UPS
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacles
6 x NEMA 5-15R
Dataline Protection
Protection Type
Bypass Switch
Automatic
Emergency Power OFF
Yes
Cord Length
10 ft
Power Description
Load Capacity
1500 VA/1200 W
Input Voltage
120 V AC
Output Voltage
120 V AC
Input Current
12 A
Waveform Type
Surge Energy Rating
600 J
Circuit Breaker
Yes
Management
Network Management
SNMP Manageable
Alarm
Controls/Indicators
Status Indicators
- 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information
- 4-LED meter displays load and battery charge levels
- LED panel rotates for viewing in rack/tower formats
Interfaces/Ports
Serial Port
Yes
USB
Yes
Total Number of Expansion Slots
1
Battery Information
Backup/Run Time (Full Load)
5 Minute
Backup/Run Time (Half Load)
14 Minute
Typical Battery Recharge Time
6 Hour
Hot Swappable
Yes
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Thermal Dissipation
178.69 W
Physical Characteristics
Height
3.5"
Width
17.5"
Depth
19"
Rack Height
2U
Form Factor
Rack/Tower
Weight (Approximate)
44.09 lb
Miscellaneous
Package Contents
- SU1500RTXL2UN UPS with Pre-installed SNMPWEBCARD
- Poweralert Software and Cabling
- Mounting Hardware For 4 Post Rack Enclosures
- Instruction Manual
Certifications & Standards
- UL1778 (USA)
- CSA (Canada)
- NOM (Mexico)
- FCC Part 15 Category A (EMI)
Software Included
Poweralert Software
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
2 Year
