Tripp Lite PDU3EVN6H50B 3-Phase PDU Monitored 200/208/240V 14.5kW 42 C13; 6 C19 LCD TAA

MPN: PDU3EVN6H50B
TRP-PDU3EVN6H50B-00
Highlights
  • Output Voltage: 200 V AC | 208 V AC | 240 V AC
  • Rack Height: 0U
  • Product Type: PDU
  • Condition: New
TRP-PDU3EVN6H50B-00
TRP-PDU3EVN6H50B-00

Tripp Lite PDU3EVN6H50B 3-Phase PDU Monitored 200/208/240V 14.5kW 42 C13; 6 C19 LCD TAA

MPN: PDU3EVN6H50B
Highlights
  • Output Voltage: 200 V AC | 208 V AC | 240 V AC
  • Rack Height: 0U
  • Product Type: PDU
  • Condition: New

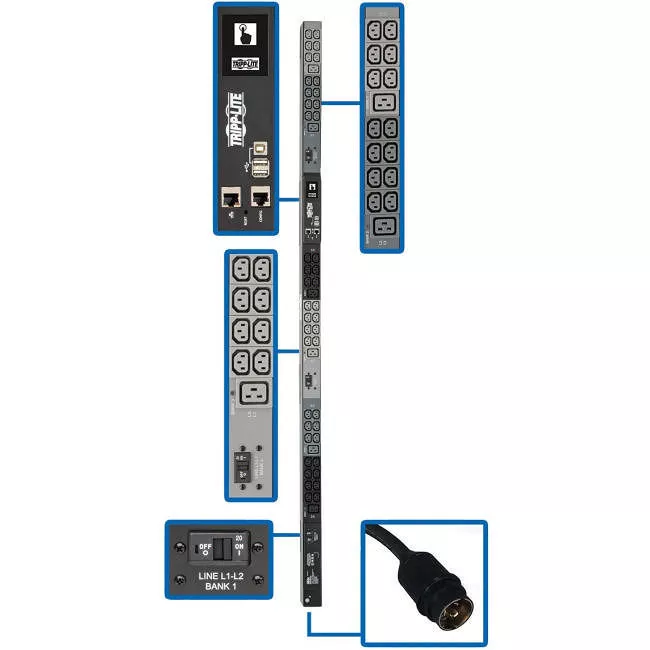

The PDU3EVN6H50B 14.5kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, it features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with Hubbell CS8365C input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
