Integrate mixed cabling environments using either switched or shared Ethernet. This full-featured media converter makes the migration from copper to fiber easier than ever before.
About
Integrate mixed cabling environments using either switched or shared Ethernet. This full-featured media converter makes the migration from copper to fiber easier than ever before.
Specifications
General Information
Manufacturer
Transition Networks, Inc
Manufacturer Part Number
CETTF1013-105
Manufacturer Website Address
http://www.transition.com
Brand Name
Transition Networks
Product Model
CETTF1013-105
Product Name

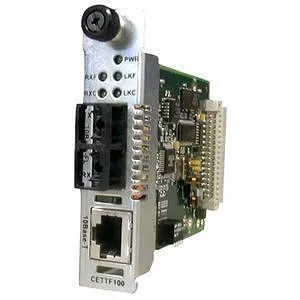

Ethernet Point System 10BASE-T to 10BASE-FL Media Converter
Product Type
Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports
2
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Number of SC Ports
1
SC Port Type
Duplex
Media & Performance
Media Type Supported
Fiber Mode Supported
Multi-mode
Maximum Distance Supported
1.24 Mile
Network & Communication
Ethernet Technology
Ethernet
Network Technology
Power Description
Power Consumption
2.30 W
Physical Characteristics
Height
3.4"
Width
3.4"
Depth
5"
Weight (Approximate)
8 oz
Miscellaneous
Additional Information
- Operating temperature range for this Slide-In-Module depends on the physical characteristics and the installation configuration of the TRANSITION Networks chassis in which this Slide-In-Module will be installed. See the User's Guide for the chassis in which this Slide-In-Module will be installed for a discussion of temperature-related installation constraints. AutoCross:
- AutoCross technology eliminates an entire category of network troubleshooting by automatically matching crossed and uncrossed cables to the appropriate connection. The twisted pair port is instantaneously configured to the correct MDI or MDI-X configuration. LinkAlert:
- Because most Ethernet technologies are unable to recognize downlink faults, a failed link may appear normal to network management, requiring unnecessary time devoted to troubleshooting. LinkAlert monitors all physical uplink and downlink failures and enables all faults to be detected by network management. Fiber Optic Connector:
- Min TX PWR: -16.0 dBm
- Max TX PWR: -10.0 dBm
- RX Sensitivity: -29.5 dBm
- Max In PWR: -7.2 dBm
- Link Budget: 13.5 dB 3-position Jumper:
- Hardware: Converter mode is determined by 4-position switch settings.
- Software: Converter mode is determined by most recently saved on-board microprocessor settings. 4-position Switch:
- Fiber Port (UP = enabled): Enables/disables network traffic on the fiber port.
- Copper Port (UP = enabled): Enables/disables network traffic on the copper port.
- AutoCross (UP = enabled): Enables/disables the AutoCross function
- LinkAlert (UP = enabled): Enables/disables the LinkAlert function
Certifications & Standards
- IEEE® 802.3
- UL Listed
- C-UL Listed (Canada)
- CE Mark
- EN55022
- EN55024
- EN61000
- FCC & CISPR Class A devices comply with radiated emissions standards for commercial applications in the United States (FCC Class A)
- FCC & CISPR Class B devices comply with radiated emissions standards for residential applications in the United States (FCC Class B)
Warranty
Limited Warranty
Lifetime
Additional Warranty Information
Effective for Products Shipped May 1, 1999 and After. Every Transition Networks' labeled product purchased after May 1, 1999 will be free from defects in material and workmanship for its lifetime. This warranty covers the original user only and is not transferable. This warranty does not cover damage from accident, acts of God, neglect, contamination, misuse or abnormal conditions of operation or handling, including over-voltage failures caused by use outside of the product's specified rating, or normal wear and tear of mechanical components. If the user is unsure about the proper means of installing or using the equipment, contact Transition Networks' free technical support services.
