THT-SP-1200M-00
MPN: SP-1200M

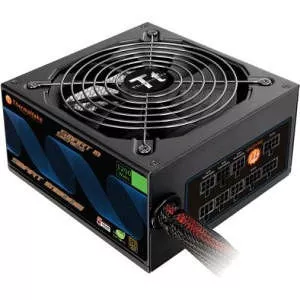

Thermaltake SP-1200M SMART 1200W Modular Power Supply

Highlights
General Information
Manufacturer
Thermaltake Technology Co., Ltd
Manufacturer Part Number
SP1200M
Manufacturer Website Address
http://www.thermaltakeusa.com
Brand Name
Thermaltake
Product Line
SMART M
Product Model
SP-1200M
Product Name
SMART 1200W Modular
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
88%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Voltage
  • Over Current
  • Over Loading
  • Under Voltage
  • Short Circuit
  • Over Power
    • Modular
    Yes
    ATI CrossFire Supported
    Yes
    NVIDIA SLI Supported
    Yes
    Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    2
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    100 V AC - 240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 25 A
  • 5 V DC @ 25 A
  • 12 V DC @ 40 A
  • 12 V DC @ 85 A
  • -12 V DC @ 800 mA
  • 5 V DC @ 6 A
    • Input Current
  • 15 A @ 110V
  • 5 A @ 220V
    • Output Current
  • 25 A
  • 40 A
  • 85 A
  • 800 mA
  • 6 A
    • Output Power
    1200 W
    Interfaces/Ports
    Receptacles
  • 1 x 24-pin ATX Motherboard
  • 1 x 4+4pin ATX12V Motherboard
  • 1 x 8-pin EPS12V Motherboard
  • 12 x Serial ATA
  • 6 x 6+2pin PCI-E
  • 6 x 4-pin LP4 Peripheral Device
  • 1 x 4-pin SP4 Floppy Drive
    • Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Internal
    Height
    5.9"
    Width
    3.4"
    Depth
    6.3"
    Miscellaneous
    Energy Star
    Yes
    Country of Origin
    China
    Environmentally Friendly
    Yes
    Energy Efficiency Certification
  • 80 Plus Bronze
  • ENERGY STAR 5.0
    • Energy Efficiency Compliance
    Energy-related Products Directive Ready (ErP Ready)
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    5 Year
