THT-SP-1000M-00
MPN: SP-1000M

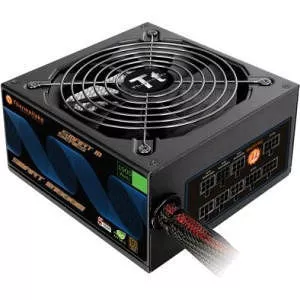

Thermaltake SP-1000M SMART 1000W Modular Power Supply

Highlights
General Information
Manufacturer
Thermaltake Technology Co., Ltd
Manufacturer Part Number
SP1000M
Manufacturer Website Address
http://www.thermaltakeusa.com
Brand Name
Thermaltake
Product Model
SP-1000M
Product Name
SMART 1000W Modular
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
88%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Voltage
  • Over Current
  • Over Loading
  • Under Voltage
  • Short Circuit
  • Over Power
    • Modular
    Yes
    ATI CrossFire Supported
    Yes
    NVIDIA SLI Supported
    Yes
    Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    2
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    100 V AC - 240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 28 A
  • 5 V DC @ 30 A
  • 12 V DC @ 40 A
  • 12 V DC @ 80 A
  • -12 V DC @ 800 mA
  • 5 V DC @ 3 A
    • Input Current
  • 13 A @ 110V
  • 5 A @ 220V
    • Output Current
  • 28 A
  • 30 A
  • 40 A
  • 80 A
  • 800 mA
  • 3 A
    • Output Power
    1000 W
    Interfaces/Ports
    Receptacles
  • 1 x 24-pin ATX Motherboard
  • 1 x 4+4pin ATX12V Motherboard
  • 1 x 8-pin EPS12V Motherboard
  • 12 x Serial ATA
  • 6 x 6+2pin PCI-E
  • 6 x 4-pin LP4 Peripheral Device
  • 1 x 4-pin SP4 Floppy Drive
    • Physical Characteristics
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    6.3"
    Miscellaneous
    Energy Star
    Yes
    Country of Origin
    China
    Environmentally Friendly
    Yes
    Energy Efficiency Certification
  • ENERGY STAR 5.0
  • 80 Plus Bronze
    • Energy Efficiency Compliance
    Energy-related Products Directive Ready (ErP Ready)
    Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
    • Warranty
    Limited Warranty
    5 Year

    Specifications
