TYN-S8253GM4NE-2T-00
MPN: S8253GM4NE-2T

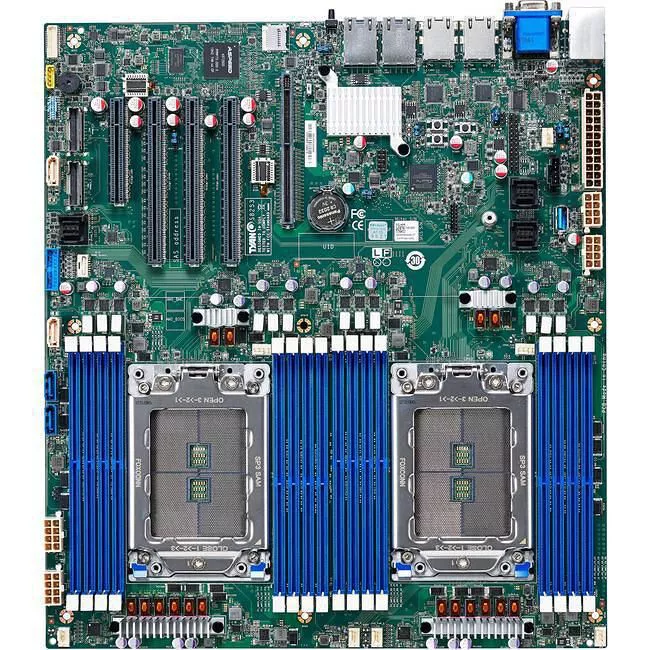

TYAN S8253GM4NE-2T Server Motherboard - Tomcat CX S8253 - 2x AMD EPYC 7002/SP3 - PCIe 4.0 - EATX

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S8253GM4NE-2T
Manufacturer Website Address
http://www.tyan.com
Brand Name
Mitac
Product Line
Tomcat CX
Product Model
S8253GM4NE-2T
Product Name
Tomcat CX S8253 Server Motherboard
Packaged Quantity
1
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Total Processor Supported
2
Processor Socket
Socket SP3
Processor Supported
EPYC
Memory
Number of Memory Slots
16
Memory Form Factor
  • DIMM
  • RDIMM
  • LRDIMM
    • Maximum Memory Supported
    4 TB
    Memory Standard
    DDR4-3200/PC4-25600
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
    3200 MHz
    I/O Controller
    Controller Type
    Serial ATA/600
    Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    AST2500
    Network & Communication
    Gigabit Ethernet
    Yes
    10Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    5
    Total Number of PCI Express Slots
    5
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    3
    Number of PCI Express x32 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.1 Ports
    2
    VGA
    Yes
    Number of Network (RJ-45) Ports
    4
    Onboard Interfaces
    Number of SATA Interfaces
    2
    Total Number of Onboard USB Ports
    2
    Number of Onboard USB 3.1 Ports
    2
    Number of NVMe Ports
    2
    Physical Characteristics
    Form Factor
    Extended ATX
    Width
    13.4"
    Depth
    12"
    Miscellaneous
    Package Contents
    • Tomcat CX S8253 Server Motherboard
    • 1 x Quick Installation Guide
    • 2 x SATA Signal Cables
    • 1 x TYAN Device Driver CD
    • 1 x I/O Shield
    Country of Origin
    China
    Environmentally Friendly
    Yes
    Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • China Restriction of Hazardous Substances (China RoHS)
    • Warranty
    Limited Warranty
    36 Month
