TYN-S8026GM2NR-LE-00
MPN: S8026GM2NR-LE

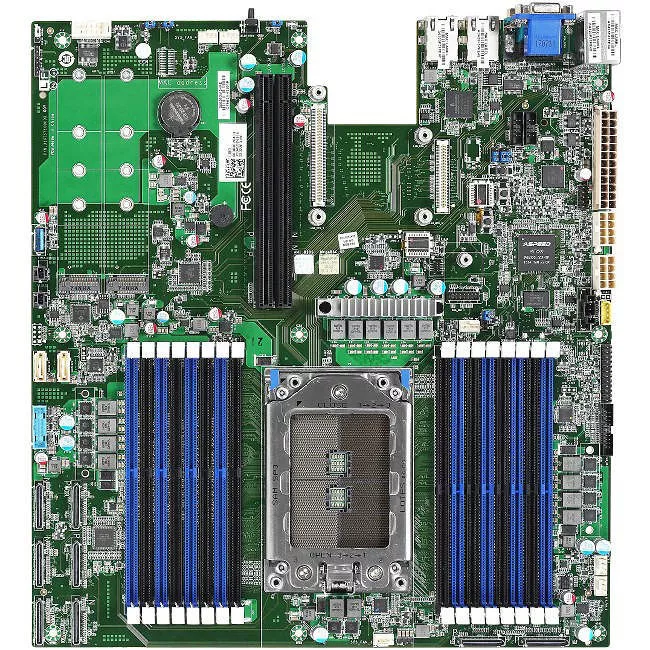

MiTAC S8026GM2NR-LE Server Motherboard - 1x Socket SP3 - AMD 16x DDR4 - EATX - 2x M.2 - No

Highlights
Processor Socket:
Socket SP3
Total Processor Supported:
1
Memory Technology:
DDR4 SDRAM
Maximum Memory:
2 TB
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S8026GM2NR-LE
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Tomcat SX
Product Model
S8026
Product Name
Tomcat SX S8026 Server Motherboard
Packaged Quantity
1
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Total Processor Supported
1
Processor Socket
Socket SP3
Processor Supported
EPYC
Memory
Number of Memory Slots
16
Memory Form Factor
  • RDIMM
  • DIMM
  • LRDIMM
  • NVDIMM
    • Maximum Memory Supported
    2 TB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
    2667 MHz
    I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    No
    Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    AST2500
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    2
    Total Number of PCI Express Slots
    2
    Number of PCI Express x24 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.0 Ports
    2
    VGA
    Yes
    Onboard Interfaces
    Number of M.2 Interfaces
    2
    Total Number of Onboard USB Ports
    3
    Number of Onboard USB 3.0 Ports
    1
    Physical Characteristics
    Form Factor
    Extended ATX
    Width
    13"
    Depth
    12"
    Miscellaneous
    Package Contents
    • Tomcat SX S8026 Server Motherboard
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year

    Specifications
