MPN: S7105AGM2NR-2T

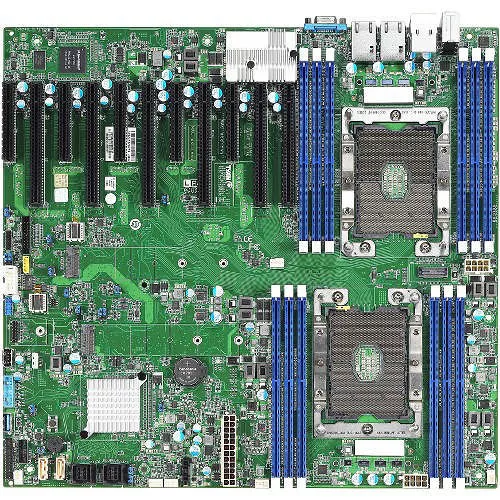

TYAN S7105AGM2NR-2T Tempest HX S7105 Workstation Motherboard - Intel Chipset - Socket P LGA-3647
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S7105AGM2NR-2T
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Tempest HX
Product Model
S7105
Product Name
Tempest HX S7105 High Performance Xeon Scalable Workstation
Packaged Quantity
1
Product Type
Workstation Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Total Processor Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
Xeon
Memory
Number of Memory Slots
12
Memory Form Factor
Maximum Memory Supported
1.50 TB
Memory Technology
DDR4 SDRAM
Memory Speed Supported
2666 MHz
I/O Controller
Controller Type
Serial ATA/600
Intel RSTe
Yes
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
AST2500
Audio
Audio Channels
2.1
Network & Communication
Gigabit Ethernet
Yes
10Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
11
Total Number of PCI Express Slots
11
Number of PCI Express x8 Slots
5
Number of PCI Express x16 Slots
6
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
VGA
Yes
Onboard Interfaces
Number of SATA Interfaces
2
Number of Mini-SAS Interfaces
2
Number of M.2 Interfaces
2
Total Number of Onboard USB Ports
1
Number of Onboard USB 3.0 Ports
1
Physical Characteristics
Form Factor
Proprietary Form Factor
Width
14.2"
Depth
13.2"
Miscellaneous
Package Contents
- Tempest HX S7105 High Performance Xeon Scalable Workstation
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Country of Origin
Taiwan
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
